Flexible LED light sheets are useful when a project needs shallow-depth backlighting, custom shapes, or more even illumination than a simple LED strip layout can provide. They are often used behind translucent stone, onyx, acrylic panels, signs, retail displays, light boxes, feature walls, bar counters, and millwork details.
The most important rule is simple: do not treat every LED light sheet as freely cuttable. A flexible LED light sheet should only be cut at the approved cut marks shown on the actual product drawing or datasheet. Cutting outside those areas can damage circuits, change the electrical load, create dark sections, or make the sheet unsafe to use.
This guide explains the practical installation workflow we recommend before a sheet is cut, wired, mounted, and covered by stone, acrylic, signage faces, or decorative panels. For a final project layout, send the target size, material, voltage, quantity, and installation depth before production.
Quick Answer
To cut and install flexible LED light sheets, confirm the model first, mark the approved cutting positions, test the sheet before cutting, cut only along the specified cut lines, prepare soldering or connector points, size the power supply with reserve capacity, test the layout again, mount the sheets on a clean and suitable surface, and verify brightness before closing the backlit panel.
For backlit stone and large architectural panels, the LED sheet layout should be reviewed before installation. Stone thickness, translucency, cavity depth, voltage drop, wire length, controller type, dimming method, and service access can all change the final result.
Before You Cut: Confirm the Actual Product
Different LED light sheets may look similar from the front, but the circuit layout, copper path, voltage, power density, cut mark spacing, and connection method can be different. Before cutting, confirm the exact model instead of relying on a general photo or a previous project drawing.
| Item to confirm | Why it matters |
|---|---|
| Model number | Determines voltage, power density, LED pitch, cut marks, and wiring method. |
| Input voltage | 12V and 24V systems cannot be mixed unless the product and driver are designed for it. |
| Cutting positions | Only approved cut marks should be used. Random cutting can damage circuits. |
| Power per sheet or per area | Required for power supply sizing and controller load calculation. |
| Channel type | Single color, tunable white, RGB, RGBW, and pixel sheets need different wiring and controllers. |
| Mounting surface | A clean, flat, stable surface improves adhesion and helps avoid visible shadows. |
| Access for service | Power supplies, controllers, and connection points should remain reachable after installation. |
If you are using the sheets behind translucent stone, do not make the final decision from the LED sheet alone. Always check the real stone sample, thickness, veining, backing color, and cavity depth. A layout that looks even behind acrylic may show hotspots behind a different stone slab.
Recommended Tools and Materials
The exact tools depend on the product construction and installation location, but most flexible LED light sheet projects require careful measuring, clean cutting, reliable electrical connections, and repeated testing.
- Tape measure, ruler, square, and layout drawing.
- Fine marker or removable marking tape for cut positions.
- Sharp scissors or suitable cutting tool approved for the sheet type.
- Soldering iron, solder, heat shrink, wire, or approved connectors.
- Multimeter for polarity and voltage checks.
- Correct constant-voltage power supply.
- Compatible controller or dimmer if the project requires dimming, CCT, RGB, or DMX control.
- Clean mounting surface, adhesive support, screws, clips, or mechanical fixing method if required by the project.
Do not rely only on adhesive when the environment, heat, gravity, dust, moisture, or service life requires mechanical support. For vertical feature walls and stone projects, the mechanical design should be reviewed with the installer.
Step 1: Plan the Layout Before Cutting
Start with the final illuminated area, not with the sheet size. Measure the visible panel, edge returns, dead zones, fixing areas, stone overlap, frame depth, and cable exit points. Then decide how many LED sheets are needed and where each sheet will sit.
For rectangular panels, the layout may be simple. For curved signs, logos, stone patterns, columns, reception desks, and bar counters, the cut plan should be reviewed carefully because offcuts, connection points, and feed locations can affect both cost and brightness uniformity.
You can use the LED light sheet calculator for an early estimate of sheet count and power load. Treat the result as an estimate, not the final electrical design. Final production should still be checked against the selected model and drawing.
Step 2: Test the Sheet Before Cutting
Before cutting or soldering, power the full sheet with the correct voltage and check whether all LEDs light evenly. This simple step helps identify transport damage, polarity mistakes, or handling issues before the sheet is modified.
- Use the correct constant-voltage power supply.
- Check polarity before connecting.
- Do not exceed the rated voltage.
- Check for dark sections, flicker, uneven brightness, or damaged LEDs.
- Take a photo or short video if the project needs approval before production.
If the sheet is going behind stone, acrylic, fabric, or a printed diffuser, test it with the real material whenever possible. The material can change the apparent brightness, color temperature, and hotspot visibility.
Step 3: Disconnect Power Before Cutting or Wiring
After testing, disconnect power before cutting, soldering, wiring, or changing the layout. Never cut or modify an LED light sheet while it is powered.
- Switch off the constant-voltage driver before any cutting or wiring work.
- Check that the sheet is no longer powered before touching cut lines, solder pads, copper traces, or connection wires.
- Reconnect power only after polarity, insulation, and connection points have been checked.
Step 4: Cut Only at Approved Cut Marks
After the layout is confirmed, mark only the approved cut positions. Cut slowly and keep the tool aligned with the cut line. Do not cut through LED packages, resistors, ICs, copper traces, solder pads, or unknown circuit areas.
If a required project size does not align with the available cut marks, do not force a random cut. Adjust the layout, leave a small margin, use a different sheet size, or request a custom layout review. A few millimeters of planning is safer than damaging a circuit after production.
Step 5: Prepare Wiring and Connection Points
After cutting, prepare the connection points according to the product type. Some sheets use solder pads, some use terminals, and some projects require custom wire leads. Keep polarity clear and label cable routes before the sheets are mounted.
For larger projects, do not feed too many sheets through one long thin cable. Long cable runs and high current can create voltage drop, which often appears as dim ends, uneven brightness, or color shift. Large layouts may need multiple feed points, thicker wire, shorter runs, or separate zones.

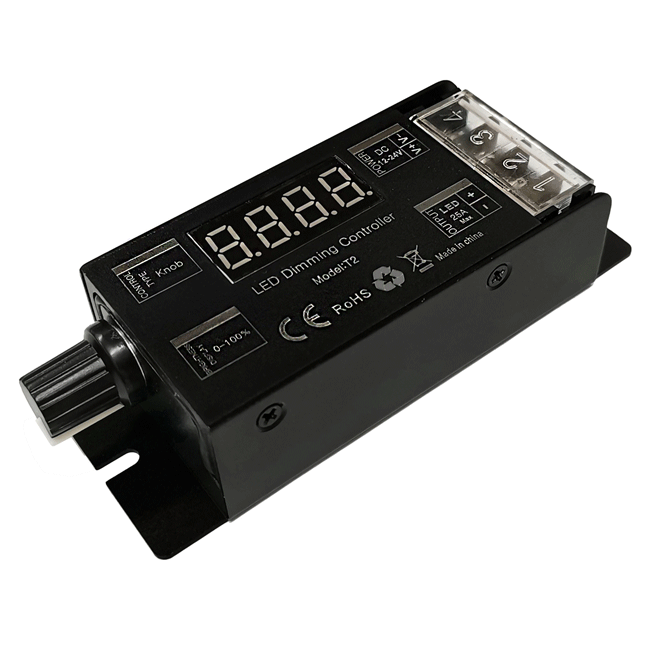

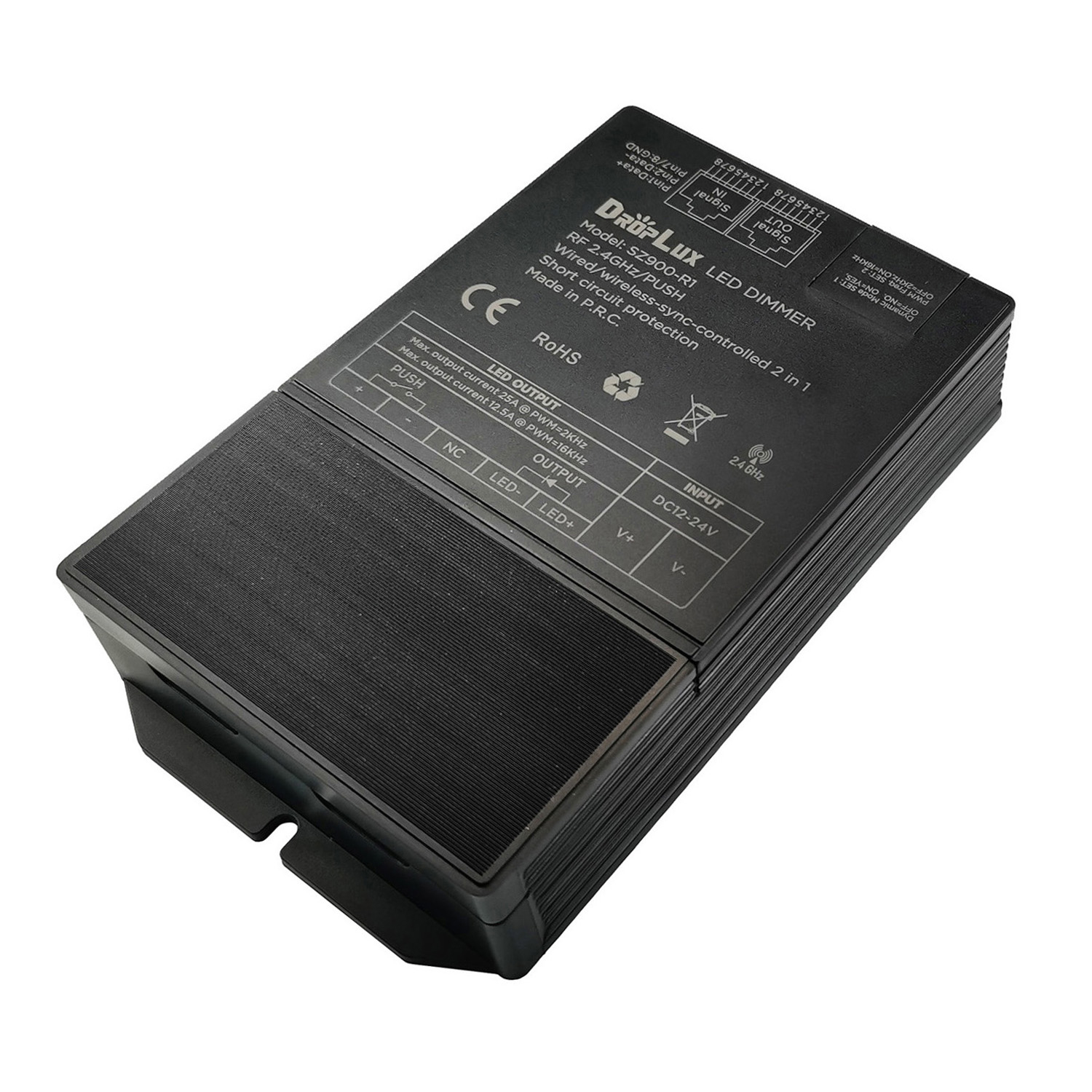

For controller selection, match the controller to the LED sheet channel type. A single-color sheet should use a compatible single-color dimmer or PWM controller. A tunable white sheet needs CCT control. RGB, RGBW, and pixel products require their own controller types. Avoid unverified controller combinations.
Step 6: Size the Power Supply Correctly
The power supply should match the LED sheet voltage and have enough capacity for the calculated load. A common approach is to calculate the total LED load first, then add reserve capacity so the driver is not operated continuously at its maximum rating.
For example, if the selected layout is estimated at 96W, the power supply capacity should be higher than 96W after adding reserve. The exact reserve depends on the project, driver type, environment, dimming requirements, and local electrical practice. For architectural projects, it is better to review the load, zones, and wiring before final installation.
For more detail, see our guide on how to calculate power supply size for LED light sheets.
Step 7: Mount the LED Light Sheets
Before mounting, clean the installation surface and remove dust, oil, loose paint, and uneven debris. The surface should be flat enough to avoid shadows and stable enough to hold the lighting system during service life.
- Dry-fit the LED sheets before removing adhesive backing or fixing them permanently.
- Keep wire exits and service access clear.
- Avoid folding, twisting, or sharply bending the sheet beyond its allowed limit.
- Do not place heavy stone or panels directly on exposed LED components.
- Protect solder joints and connection points from tension.
If the project uses translucent stone, leave enough space for uniform light distribution. The required cavity depth depends on LED pitch, brightness, stone translucency, diffusion, and surface finish. A sample test is strongly recommended before bulk production.
Step 8: Final Test Before Closing the Panel
After mounting and wiring, test the full installation before closing the stone, acrylic, sign face, diffuser, or millwork cover. This is the last easy opportunity to correct polarity, dark zones, loose wires, voltage drop, or controller settings.
- Check all zones at full brightness.
- Check dimming from low to high if a dimmer is used.
- Check tunable white, RGB, RGBW, or DMX behavior if applicable.
- Check visible uniformity through the final material.
- Confirm power supplies and controllers remain accessible for service.
Example: Cutting and Wiring a Flexible LED Light Sheet for a 600 mm x 900 mm Backlit Panel
The following example is a planning illustration for a 600 mm x 900 mm translucent stone, acrylic, or decorative backlit panel. It is not a universal cutting rule. Always confirm the actual model drawing, cut marks, voltage, polarity, and rated power before production.
| Example model type | Cuttable flexible PCB LED light sheet, 24V constant-voltage version |
| Target panel size | 600 mm x 900 mm visible backlit area |
| Target application | Backlit stone panel, reception feature panel, light box, or decorative wall insert |
| Allowed cut direction | Only along approved factory cut lines shown on the product drawing |
| Forbidden cut area | LED packages, resistors, ICs, copper traces, solder pads, and unmarked circuit areas |
| Connection check | Use marked solder pads, confirm + / – polarity, insulate solder joints, and strain-relieve wires |
For a 600 mm x 900 mm panel, start by marking the visible area and the hidden margin separately. If the LED sheet must be trimmed, align the trim to approved cut marks instead of forcing the circuit to match the stone edge exactly. The mechanical frame or opaque border can often hide a small margin, while a random cut through the circuit can permanently damage the sheet.
When the 600 mm x 900 mm area is split into more than one electrical section, feed entry should be planned before mounting. A small panel may use one feed if the selected model, wattage, cable length, and voltage-drop target allow it. A higher-load or longer-run panel may need two feed points or separate zones so the far edge does not become visibly dim.
Before closing the panel, run a final checklist: correct voltage, correct polarity, insulated solder joints, no cuts outside approved marks, no sharp pressure on the flexible PCB, accessible power supply, and even brightness through the real material. If the project uses multiple panels, label each feed and zone so the installer can troubleshoot later without removing the finished stone.
Common Installation Mistakes
| Mistake | Possible result | Better approach |
|---|---|---|
| Cutting outside marked areas | Dead LEDs, broken circuits, unsafe operation | Cut only at approved marks on the correct datasheet. |
| Using the wrong voltage | Failure, overheating, or no light | Match sheet voltage, power supply voltage, and controller voltage. |
| One long feed cable for a large layout | Dim ends or uneven brightness | Use proper wire gauge, shorter runs, and multiple feed points. |
| No material test before stone installation | Hotspots, color shift, or unexpected veining | Test with the real stone or translucent material. |
| Power supply hidden with no access | Difficult maintenance | Plan service access before closing the wall or counter. |
| Controller type does not match sheet type | Wrong dimming or color behavior | Match controller to single color, CCT, RGB, RGBW, or pixel sheet. |
For more troubleshooting examples, read common LED light sheet installation mistakes and how to backlight onyx without hotspots.
When to Request a Custom Layout Review
A custom layout review is recommended when the project has irregular shapes, multiple panels, stone with uneven translucency, large illuminated areas, tight cavity depth, dimming control, wet locations, or long cable runs. It is also recommended when the sheet count and electrical load need to be estimated before quotation.
Send the visible panel size, quantity, material, thickness, target color temperature, voltage preference, installation depth, and drawings if available. If you already have an early estimate, include the calculator result so the layout can be checked against the real project requirements.
Reference Images for Planning Discussion
The following reference images show cutting and cut-mark planning examples. They are not JJS product instructions; always follow the selected JJS datasheet.
FAQ
Can flexible LED light sheets be cut to any size?
No. They should only be cut at the approved cutting positions for the specific product model. If the required size does not match the standard cut marks, ask for a layout review or custom solution.
Should I test the sheet before cutting?
Yes. Test the full sheet with the correct voltage before cutting, then test again after cutting and wiring. This helps identify problems before the sheet is permanently installed.
Should I disconnect power before cutting or wiring LED light sheets?
Yes. Test the sheet first, then disconnect power before cutting, soldering, wiring, or changing the layout. Reconnect power only after checking polarity, insulation, and connection points.
Can I use one power supply for a large LED sheet project?
Sometimes, but large projects often need multiple zones, multiple feed points, or more than one power supply. The decision depends on voltage, wattage, cable length, wire gauge, controller rating, and service access.
Do LED light sheets need a diffuser behind stone?
It depends on the stone, LED pitch, cavity depth, and required appearance. Some projects can achieve acceptable uniformity with the right spacing, while others need diffusion or a different layout. Always test with the real material when the visual result matters.
Can the power supply and controller be sealed behind the wall?
They should remain accessible for inspection and service. Hiding all electrical components behind a finished stone wall or counter can make future maintenance difficult and expensive.
If you are preparing a backlit stone, sign, display, or architectural lighting project, share the drawing and target size before cutting. A short review before production can prevent costly installation problems later.
