LED Light Sheet Applications for Premium Backlighting
Top 6 LED Light Sheet Applications for Architectural Design
Our Applications support uniform illumination for high-end architectural projects. From translucent onyx countertops to large-scale commercial signage, our flexible light sheets are designed for low-profile integration and reduced hotspot risk when spacing, diffusion, voltage, and material testing are planned correctly. If you have a custom project, you can contact our engineering team directly to discuss your requirements.
For custom interior designs, retail displays, and commercial fixtures, our flexible Light Sheets help designers and architects create uniform, low-profile, and highly durable backlighting setups.
Why Professional Designers Choose Our LED Light Sheet Applications?
Achieving consistent uniformity in Applications requires more than just high-quality LEDs; it requires a deep understanding of light diffusion and material translucency. Our flexible Light Sheets are specifically engineered to eliminate the “tiger stripe” effect often seen with standard LED strips.
When used in translucent stone backlighting, our high-density LED layout allows for extremely shallow cavity depths (as thin as 30mm), making it the ideal solution for modern onyx countertops, marble feature walls, and luxury retail displays. Furthermore, our systems feature a high color rendering index (CRI > 90), ensuring that your Applications render the true, natural colors of the stone and adapt perfectly to any architectural environment or mood.

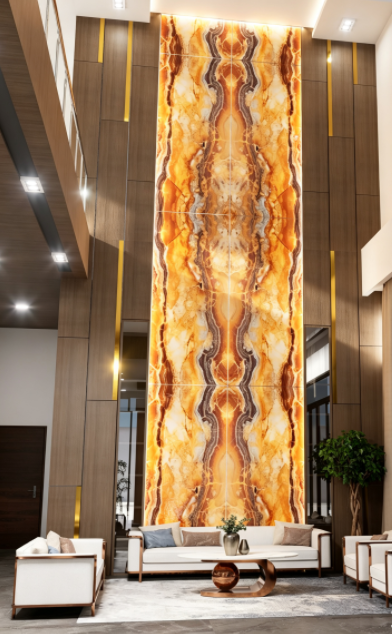

Translucent Stone / Onyx / Marble
Uniform backlighting for translucent stone counters, feature walls, and luxury interiors.
Signage & Light Boxes
Cuttable Light Sheets for shallow signs, display graphics, and large illuminated panels.
Furniture & Retail
Integrated illumination for counters, shelves, display furniture, and premium retail fixtures.
Commercial Interiors
Architectural lighting for hotels, offices, restaurants, clubs, and hospitality feature areas.
Marble and Onyx Walls
Consistent wall illumination for villas, lobbies, bathrooms, and high-end renovation projects.
Material Testing
Compare light-off and light-on effects before choosing LED density and installation layout.
Technical Specifications for LED Light Sheet Applications
To ensure successful Applications, we recommend matching the physical parameters of the light panels with your design requirements. Our products feature a high color rendering index (CRI > 90), which is essential for rendering the true colors of natural marble and onyx. The input voltage is available in standard 24V DC to minimize voltage drop over large installation areas. Contact our team to request custom wiring diagrams and dimming controller compatibility lists for your specific project layout.
Design Considerations for LED Light Sheet Installations
When planning your Applications, the cavity depth is the most critical factor to consider. For premium onyx or marble backlighting, we recommend maintaining a distance of at least 50mm between the LED light sheet and the translucent stone surface. This spacing, combined with the high-density LED layout of our panels, helps create a more blended, low-hotspot glow when the final material, cavity depth, and diffusion layer are verified. If your installation space is extremely tight (less than 30mm), you may need to pair the light sheets with a dedicated acrylic diffuser to distribute the light evenly and eliminate any shadow lines.
Additionally, power distribution must be calculated carefully to ensure long-term reliability. Every custom LED light sheet system must run on a matched constant-voltage power supply. To prevent voltage drops and maintain uniform brightness across large installation areas, we recommend limiting the maximum continuous run of light sheets according to our technical wiring guidelines. Always include a 20% safety margin when selecting your power supply wattage to protect the driver from overheating during prolonged use.
For architectural projects requiring bespoke dimensions, our factory offers customized layout design services. We work closely with lighting engineers and interior contractors worldwide to deliver plug-and-play systems that simplify on-site installation
How to Select LED Light Sheet Applications
Professional Applications depend on the surface material, visual goal, construction depth, and required control system. A stone feature wall needs a different lighting density than an illuminated retail shelf or a thin signage panel. Our application planning process starts by identifying the front material, measuring the available cavity, and deciding whether the project requires single color, tunable white, RGB, RGBW, or addressable lighting.
For translucent stone, onyx, marble, and quartz applications, light uniformity is the first priority. The LED pitch, sheet spacing, diffuser distance, and stone transmission rate all affect the final result. For signage and light boxes, the key requirements are consistent brightness, simple wiring, and clean edge-to-edge illumination. For furniture, retail displays, hotel interiors, and decorative ceilings, designers often require dimming, zoning, and smooth integration with a larger lighting control system.
Common LED Light Sheet Application Questions
Can LED light sheets be cut? Yes. Our flexible LED light sheets are designed with marked cut lines so installers can trim them to fit irregular shapes. Can they be used behind stone? Yes, they are widely used for onyx, translucent marble, quartz, and decorative stone. Do projects need matching power supplies and controllers? Yes. Correct driver sizing, cable routing, and control matching are essential for stable operation and long service life.
Explore suitable products in the Catalog, review datasheets in the technical resources center, or request engineering support through our custom quote form.
