Quick Answer: Custom LED Light Sheet Projects: What Information Should Buyers Prepare? is mainly about required information before quotation and production. For buyers asking for custom sizes, shapes, cable exits, or control systems, the safest approach is to confirm the material, visible size, LED sheet layout, power zones, cable route, control method, and service access before production. Use this guide as planning support, then confirm the final drawing and local code requirements.
Custom Led Light Sheet Project Requirements Decision Table
| Project question | What to check | Recommended action |
|---|---|---|
| Is the material or panel suitable? | Translucency, thickness, color, texture, cutouts, and visible edge conditions. | Review samples before production instead of assuming one layout works everywhere. |
| Will the light be even? | LED density, cavity depth, diffusion, distance to material, feed points, and dark-zone risk. | Use a mockup or drawing review for premium stone, signage, or display projects. |
| How should power be planned? | Voltage, wattage, power reserve, cable length, controller channel load, and driver access. | Use the power calculator and split large surfaces into serviceable zones. |
| What should be sent for quote? | Drawings, dimensions, material photos, target color, cable exits, and control method. | Send a clear RFQ package before expecting a reliable price or layout. |
Planning Steps
- Define the real application. Backlit stone, signage, light boxes, displays, and decorative panels have different priorities.
- Confirm visible size and material behavior. Use the LED light sheet calculator for area estimates and the backlit stone calculator for stone projects.
- Choose the layout around service access. Avoid hiding drivers, controllers, and terminal blocks where they cannot be reached later.

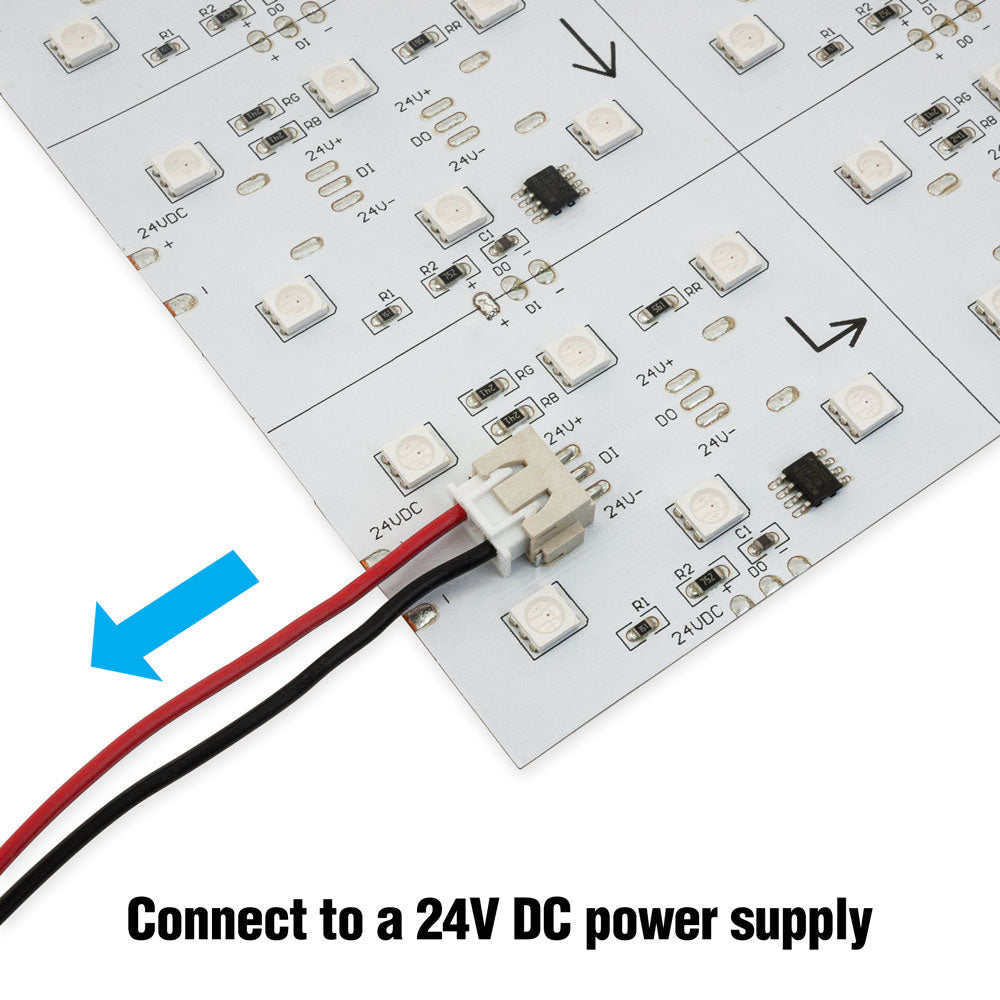

- Plan voltage and controls together. Large, dimmable, CCT, RGB, or RGBW projects need load checks beyond total watts.
- Send drawings for review. Use the project quote form when dimensions, cable exits, or material behavior are uncertain.
Project Details to Confirm
| Detail | Why it matters |
|---|---|
| Material sample or photo | Stone, acrylic, fabric, and sign faces diffuse light differently. |
| Visible dimensions | The LED sheet layout and power estimate depend on the true illuminated area. |

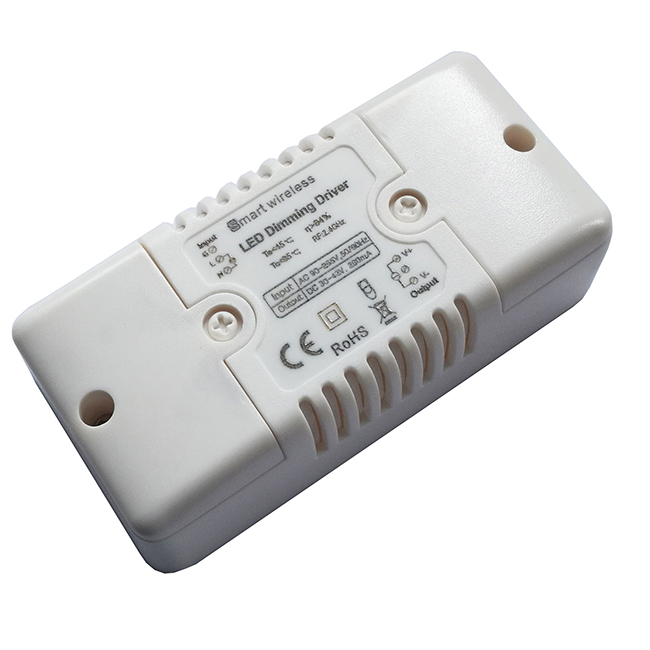

| Driver and cable location | Long cable runs can create voltage drop and maintenance problems. |
| Control method | Dimming, tunable white, RGBW, DMX, and wall controllers have different load limits. |
| Project environment | Dry indoor, damp, exterior-adjacent, bar, bathroom, and millwork locations need different checks. |
Common Mistakes
- Choosing a product before checking the actual material sample.
- Using one generic spacing or depth for every backlit stone project.
- Ignoring voltage drop, controller channel load, and driver access.
- Leaving quote requests too vague, with no drawing or cable-exit information.
- Using external reference photos as if they were guaranteed project results.
For product-level options, see flexible PCB LED light sheets. For electrical planning, pair this article with the power supply and controller guide. For stone-specific pages, review translucent stone backlighting and backlit onyx LED light sheets.
Send dimensions, material photos, drawings, cable route, voltage, and control requirements. JJS Light Sheet can review the project and suggest a practical preliminary layout.
FAQ
What should I check first for custom LED light sheet project requirements?
Start with the real project conditions: material, visible size, depth, voltage, wattage, cable route, control method, and service access. A generic answer is not enough for a B2B installation.
Does custom LED light sheet project requirements work for every project?
No. The correct design depends on material translucency, cavity depth, environment, wiring distance, control requirements, and local electrical rules. Sample testing or drawing review is recommended before production.
When should I use a calculator?
Use the LED light sheet calculator for area estimates and the power supply calculator when the project involves larger surfaces, multiple zones, long cable runs, or dimming controls.
What information should I send for a quote?
Send drawings, visible dimensions, material photos, target color temperature, voltage preference, cable exit locations, driver location, control method, and project country.
Can JJS Light Sheet confirm the final layout?
JJS Light Sheet can review project information and suggest a preliminary LED sheet layout, but final installation must follow the approved drawing and local code requirements.
