RGBCCT LED light sheet
Flexible LED Light Sheet

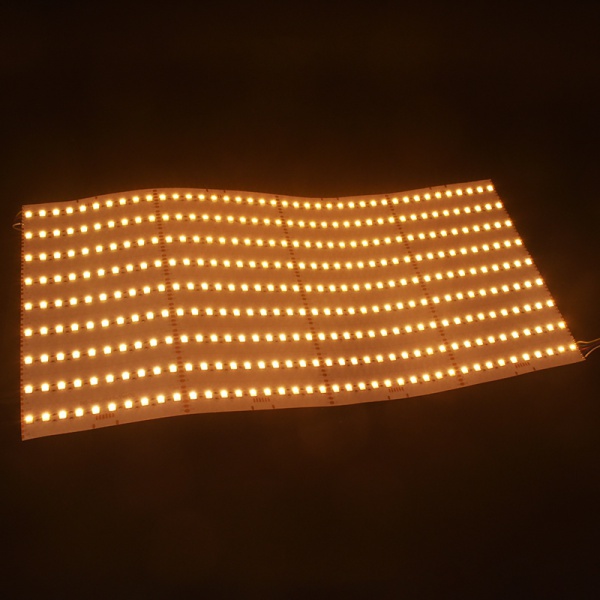

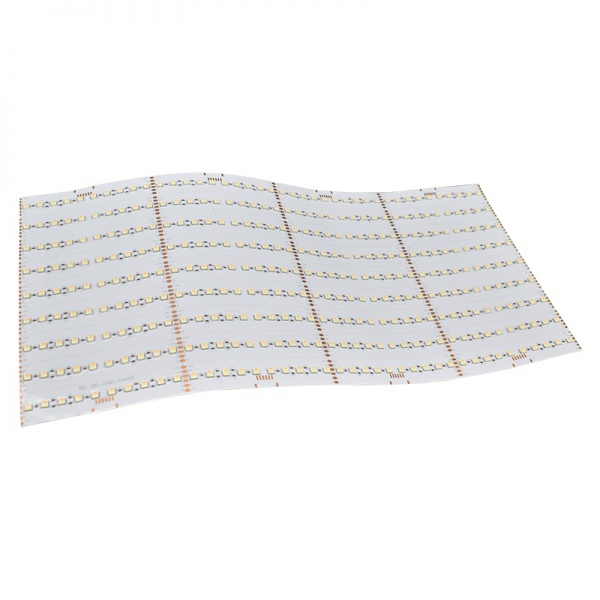

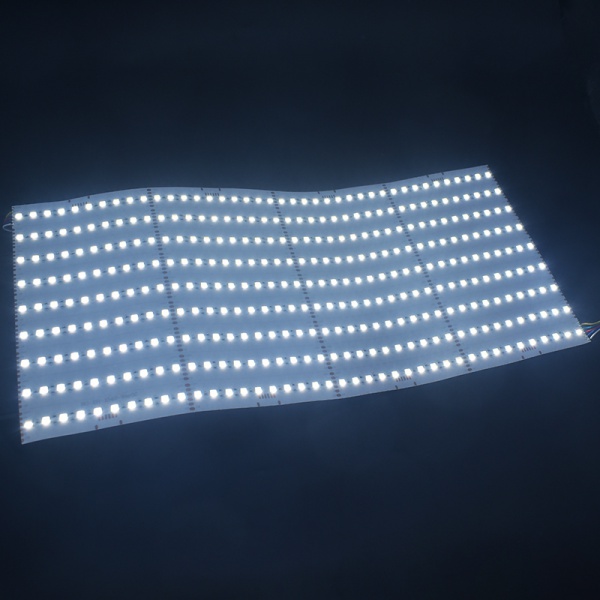

Model BG-0297-5024-0360 is a soft Flexible LED Light Sheet for backlighting projects. Confirm dimensions, color, voltage, controller, power supply, and installation environment before ordering.
Download Technical Datasheet (PDF)
Product Specifications
| Model | BG-0297-5024-0360 |
|---|---|
| Dimensions | 500*245mm |
| Power | 60W/PCS |
| LED type | SMD5050 |
| LED quantity | 360LEDs/PCS |
| LED color | RGBCW |
| Cut dimensions | 125mm |
| PCB material | double layer FPC |
| Voltage | DC24V |
| CRI | W: >95 |
| IP grade | IP20, IP54 |
| Lifetime | 36000hours |
Recommended 24V power supply
BG-0297-5024-0360 uses 60W per sheet at 24V DC. We size drivers at 80% of rated output, so they run cool and leave headroom:
| Power supply | Rated output | Max sheets per driver (80% load) |
|---|---|---|
| Mean Well LRS-350-24 indoor, dry locations |
350W | 4 |
| Mean Well HLG-320H-24 IP67, damp locations |
320W | 4 |
For larger layouts, split the sheets into groups with one driver per group and feed each group separately. See all 24V LED power supplies for light sheets, or send us your layout for a free power plan.
Product Details
Applications
- Translucent stone, onyx, marble, quartz, and artificial stone backlighting
- Advertising light boxes and signage panels
- Retail fixtures, furniture, displays, counters, and feature walls
- Commercial interiors, hotels, villas, restaurants, and custom lighting projects
Where the BG-0297 LED Sheet Works Best

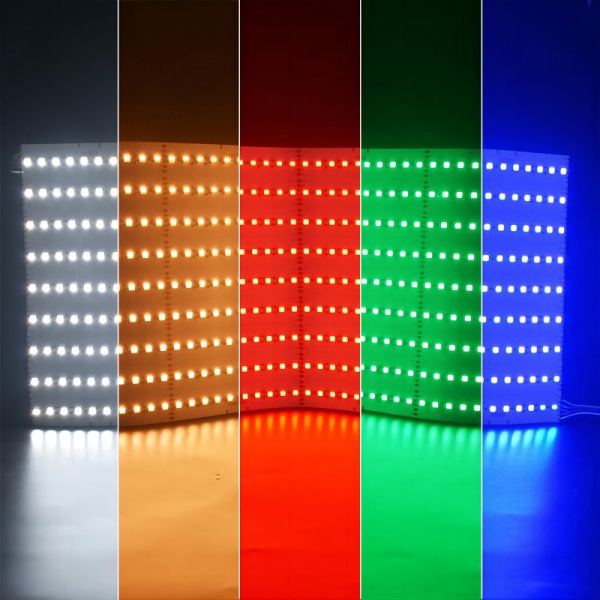

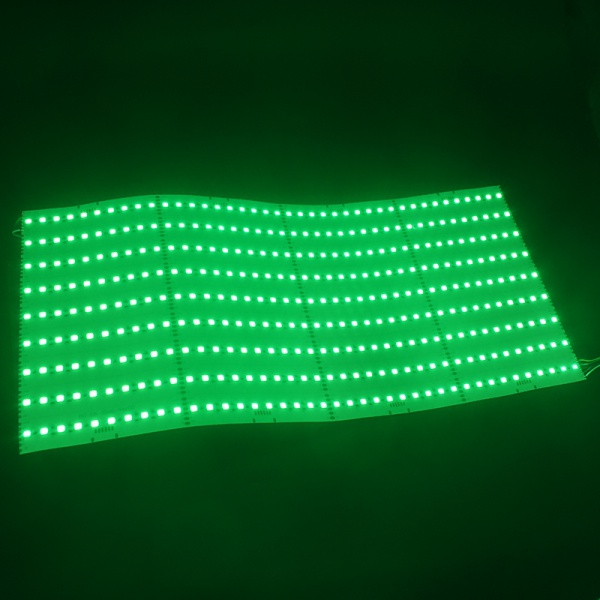

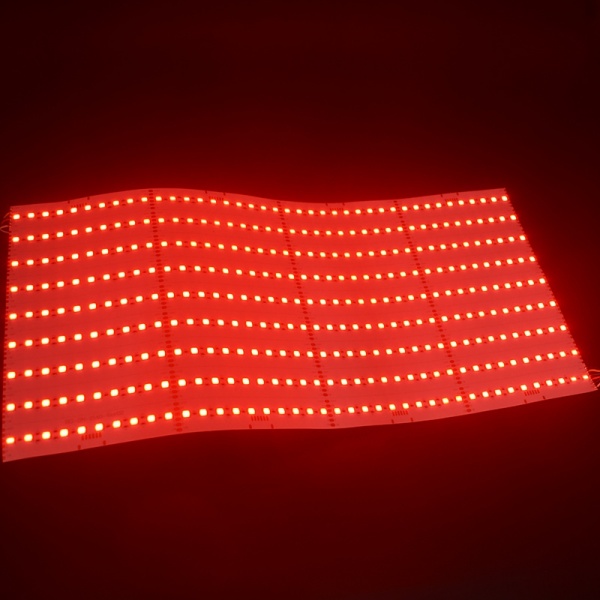

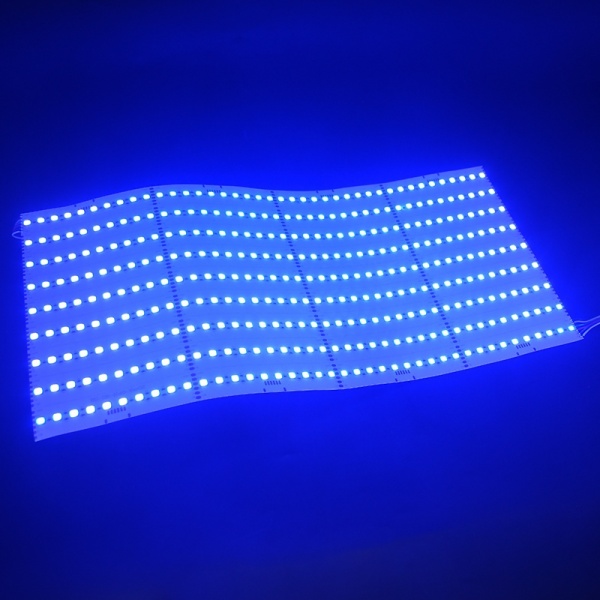

BG-0297 gives you full color plus both warm and cool white, so a single installation covers decorative color effects and practical tunable white lighting. It is a strong choice for hospitality venues, showrooms and feature ceilings where the space is used in different ways.
BG-0297 Specifications
| Model | BG-0297 |
|---|---|
| Size | 500 × 245 mm |
| Thickness | 1.6 mm (excluding connector) |
| LEDs | 360 LEDs per sheet, SMD5050 |
| Color | RGB + warm white + cool white |
| Power | 60 W per sheet |
| Voltage | DC 24V (2.5 A) |
| Minimum cutting unit | 125 mm |
| IP rating | IP20 / IP54 |
| Luminous flux | White: 2,160 lm per sheet |
| Efficacy | 90 lm/W |
| CRI | White: Ra >95 |
| Input wiring | 6-wire input (V+, R, G, B, warm white, cool white) |
| Lifetime / warranty | > 36,000 hours / 5 years |
Cutting and Installing the BG-0297 LED Light Sheet

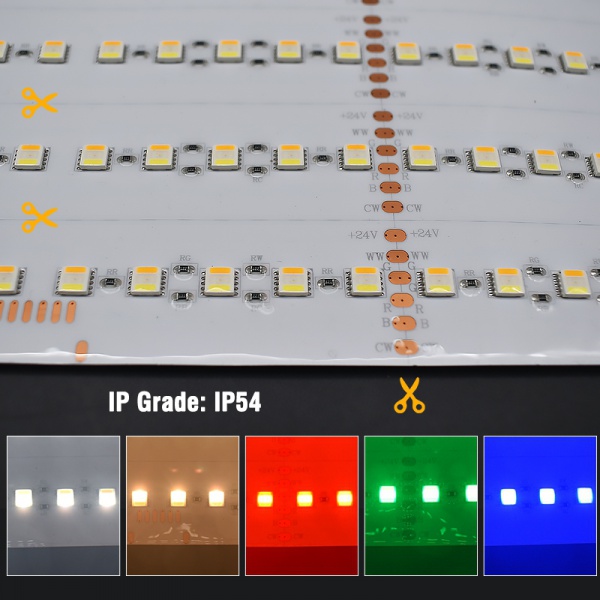

The BG-0297 is a flexible LED sheet on double-layer FPC, 1.6 mm thick, with 3M adhesive backing and screw-mount accessories. It can be cut along the marked lines with a minimum cutting unit of 125 mm; shapes follow that grid. Sheets can be joined with the supplied connection wires to cover large areas. For backlit stone, onyx, marble or resin, mount the sheet 30–80 mm behind the surface: thin, highly translucent materials need the larger distance or a diffuser, while denser materials can sit closer. Allow for the height of the input connector when planning the cavity.
Matching Power Supply and Controller
The BG-0297 uses 6-wire input (V+, R, G, B, warm white, cool white) at DC 24V. With a Mean Well HLG-320H-24 (320 W) loaded to 80%, one driver powers about 4 sheets of BG-0297; a Mean Well HLG-150H-24 powers about 2 sheets. Keep each driver at or below 80% of its rated power and split large surfaces into several zones rather than using one very large driver. For dimming and color control we recommend a 5-in-1 RF controller such as the HX-SZ900-R5 (RGB+CCT mode, up to 960 W at 24V). It also supports wireless and RJ45 wired sync between zones. Do not combine a dimmable driver with a PWM dimming controller in the same zone.
BG-0297 vs Similar LED Sheets
Its 125 mm cutting step is best for straight rectangular panels. If the panel has more detailed shapes, BG-0318 (640 × SMD2835, 30.6 mm cut) offers RGBCCT with a much finer cutting grid and higher CRI white.
BG-0297 LED Sheet FAQ
Can the BG-0297 LED sheet be cut to a custom shape?
Yes. Cut only along the marked lines; the smallest cutting unit is 125 mm, so curves and angles follow that grid. Send us your drawing and we will check the layout before production.
How much space do I need behind the stone or panel?
We recommend 30–80 mm between the LED sheet and the translucent surface. Thinner, more translucent materials need more distance or a diffuser to hide the LEDs; the sheet itself is 1.6 mm thick, plus the height of the input connector.
What is the minimum order, and can I get a sample?
Orders start from one sheet. Samples are available for a fee and usually arrive in 7–10 days, including shipping.
Which power supply and controller should I use?
BG-0297 is a DC 24V product. With a Mean Well HLG-320H-24 (320 W) loaded to 80%, one driver powers about 4 sheets of BG-0297; a Mean Well HLG-150H-24 powers about 2 sheets. For control we usually recommend a 5-in-1 RF controller such as the HX-SZ900-R5 (RGB+CCT mode, up to 960 W at 24V).
