Lens LED light sheet
Flexible LED Light Sheet
Model BG-0298-2824-0098 is a soft Flexible LED Light Sheet for backlighting projects. Confirm dimensions, color, voltage, controller, power supply, and installation environment before ordering.
Download Technical Datasheet (PDF)
Product Specifications
| Model | BG-0298-2824-0098 |
|---|---|
| Dimensions | 500*250mm |
| Power | 20W/PCS |
| LED type | SMD2835 |
| LED quantity | 98LEDs/PCS |
| LED color | 2200-6500K |
| Cut dimensions | DC24V 1LEDs/ 35.7*35.7mm |

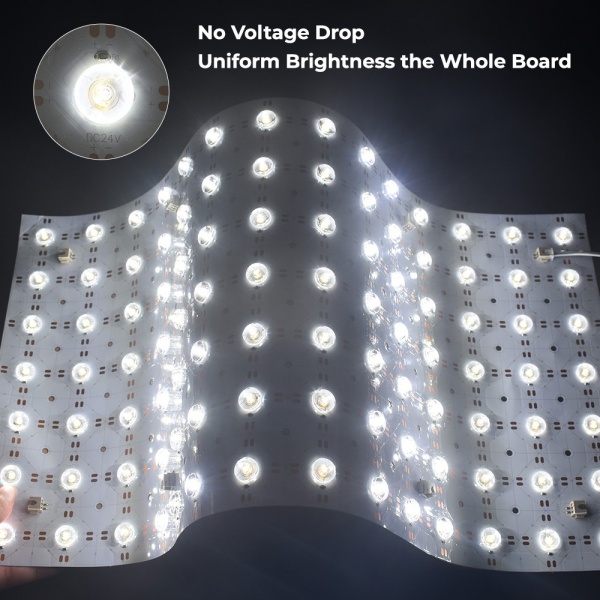

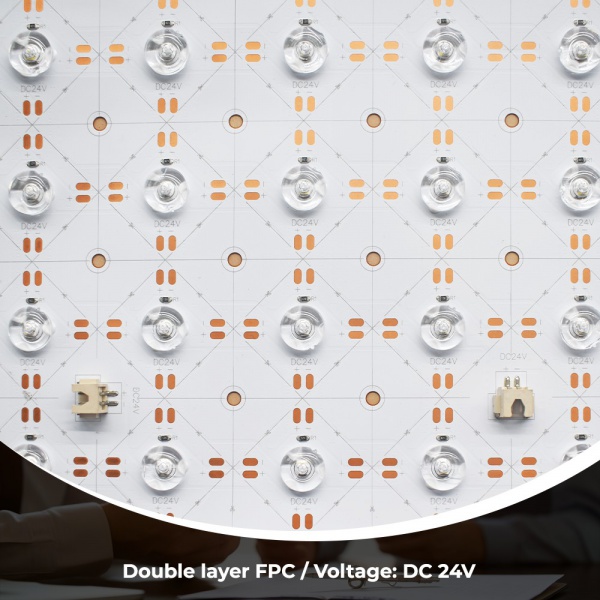

| PCB material | double layer FPC |
| CRI | Ra>95 |
| IP grade | IP20 IP54 |
| Lifetime | 36000hours |
Recommended 24V power supply
BG-0298-2824-0098 uses 20W per sheet at 24V DC. We size drivers at 80% of rated output, so they run cool and leave headroom:
| Power supply | Rated output | Max sheets per driver (80% load) |
|---|---|---|
| Mean Well LRS-350-24 indoor, dry locations |
350W | 14 |
| Mean Well HLG-320H-24 IP67, damp locations |
320W | 12 |
For larger layouts, split the sheets into groups with one driver per group and feed each group separately. See all 24V LED power supplies for light sheets, or send us your layout for a free power plan.
Product Details
Applications
- Translucent stone, onyx, marble, quartz, and artificial stone backlighting
- Advertising light boxes and signage panels
- Retail fixtures, furniture, displays, counters, and feature walls
- Commercial interiors, hotels, villas, restaurants, and custom lighting projects
Where the BG-0298 LED Sheet Works Best

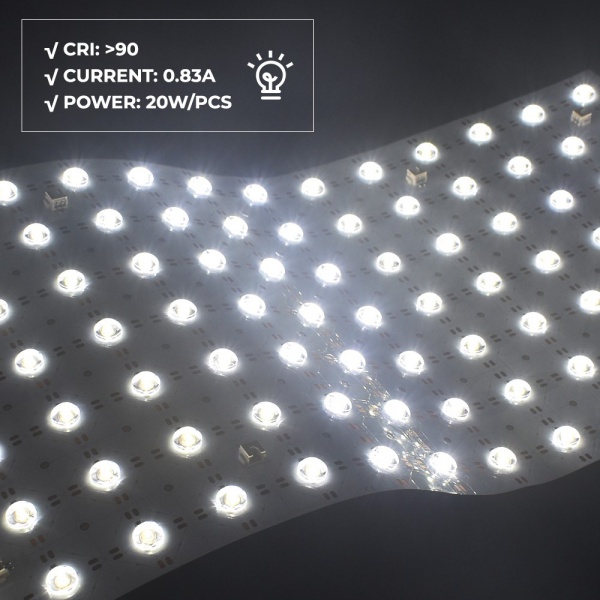

Each LED on BG-0298 has its own lens that spreads the light wider, so fewer LEDs can cover the same area. It works well in deeper light boxes and cavities and in projects where low power per sheet matters.
BG-0298 Specifications
| Model | BG-0298 |
|---|---|
| Size | 500 × 250 mm |
| Thickness | 1.6 mm (excluding connector) |

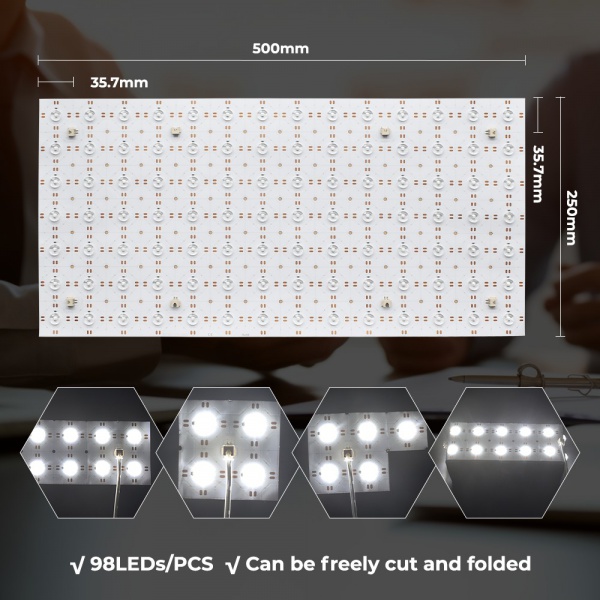

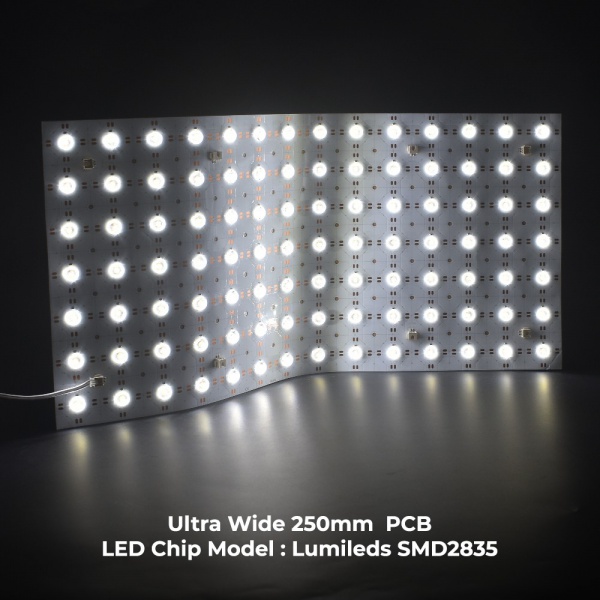

| LEDs | 98 LEDs per sheet, SMD2835 with lens |
| Color | 2200–6500K (single color, choose one) |
| Power | 20 W per sheet |
| Voltage | DC 24V (0.83 A) |
| Minimum cutting unit | 1 LED (35.7 × 35.7 mm) |

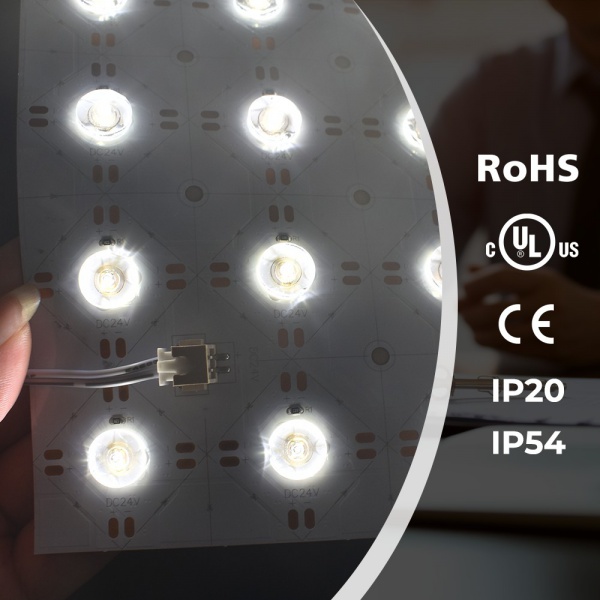

| IP rating | IP20 / IP54 |
| Luminous flux | 1,800 lm per sheet |
| Efficacy | 90 lm/W |
| CRI | Ra >95 |
| Input wiring | 2-wire input (V+ and V−) |
| Lifetime / warranty | > 36,000 hours / 5 years |
Cutting and Installing the BG-0298 LED Light Sheet

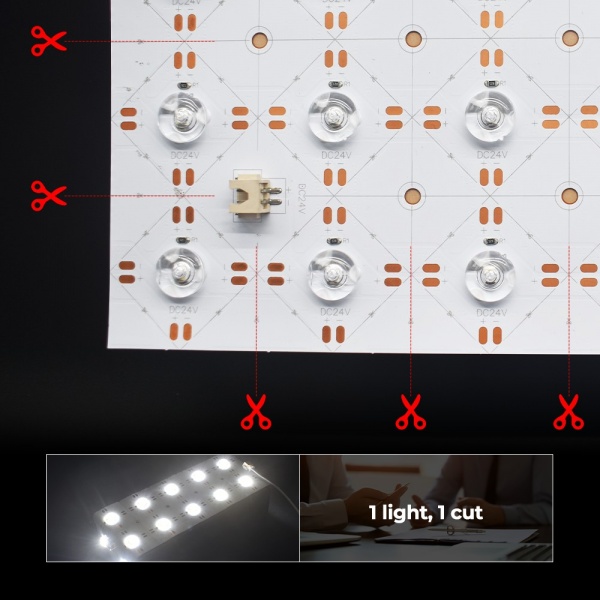

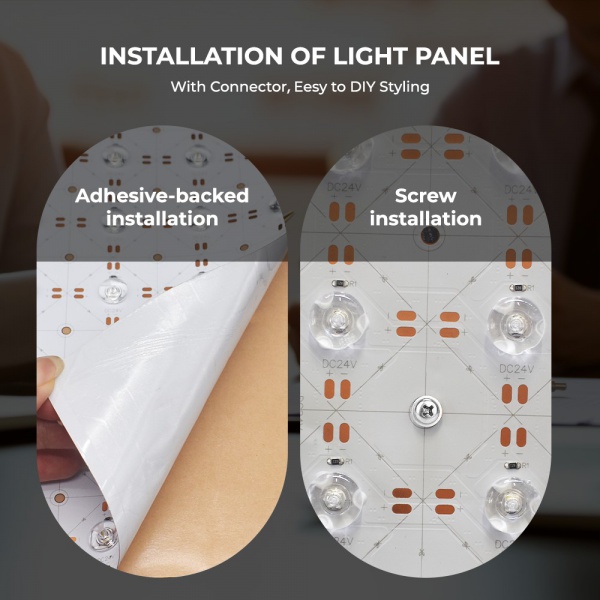

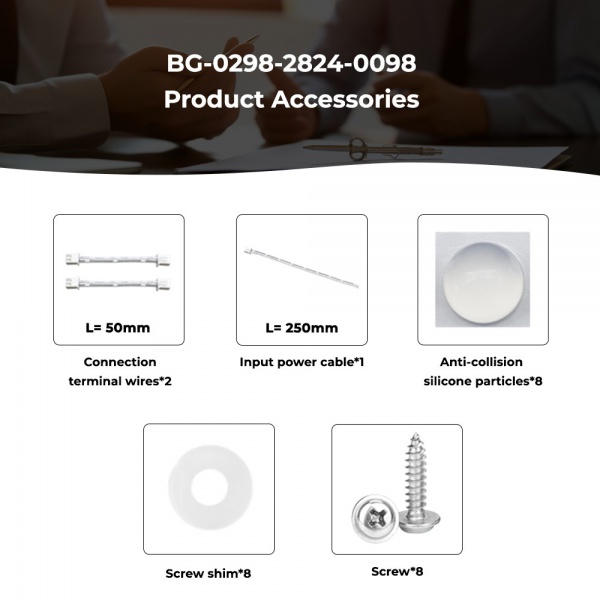

The BG-0298 is a flexible LED sheet on double-layer FPC, 1.6 mm thick, with 3M adhesive backing and screw-mount accessories. It can be cut along the marked lines with a minimum cutting unit of 1 LED (35.7 × 35.7 mm); shapes follow that grid. Sheets can be joined with the supplied connection wires to cover large areas. For backlit stone, onyx, marble or resin, mount the sheet 30–80 mm behind the surface: thin, highly translucent materials need the larger distance or a diffuser, while denser materials can sit closer. Allow for the height of the input connector when planning the cavity.
Matching Power Supply and Controller
The BG-0298 uses 2-wire input (V+ and V−) at DC 24V. With a Mean Well HLG-320H-24 (320 W) loaded to 80%, one driver powers about 12 sheets of BG-0298; a Mean Well HLG-150H-24 powers about 6 sheets. Keep each driver at or below 80% of its rated power and split large surfaces into several zones rather than using one very large driver. For dimming and color control we recommend an RF dimmer such as the HX-SZ100-SYNCDIM-14K (14-key remote, up to 600 W at 24V). For multi-zone walls the HX-SZ900-R1 adds wireless and RJ45 wired sync; for hotel and building projects the HX-SZ900-010D accepts 0–10V dimming. Do not combine a dimmable driver with a PWM dimming controller in the same zone.
BG-0298 vs Similar LED Sheets
Compared with BG-0287 (242 LEDs, 28 W), BG-0298 uses fewer, lensed LEDs at 20 W. Choose BG-0287 for very shallow cavities and the most even result through thin stone; choose BG-0298 when there is more depth behind the surface.
BG-0298 LED Sheet FAQ
Can the BG-0298 LED sheet be cut to a custom shape?
Yes. Cut only along the marked lines; the smallest cutting unit is 1 LED (35.7 × 35.7 mm), so curves and angles follow that grid. Send us your drawing and we will check the layout before production.
How much space do I need behind the stone or panel?
We recommend 30–80 mm between the LED sheet and the translucent surface. Thinner, more translucent materials need more distance or a diffuser to hide the LEDs; the sheet itself is 1.6 mm thick, plus the height of the input connector.
What is the minimum order, and can I get a sample?
Orders start from one sheet. Samples are available for a fee and usually arrive in 7–10 days, including shipping.
Which power supply and controller should I use?
BG-0298 is a DC 24V product. With a Mean Well HLG-320H-24 (320 W) loaded to 80%, one driver powers about 12 sheets of BG-0298; a Mean Well HLG-150H-24 powers about 6 sheets. For control we usually recommend an RF dimmer such as the HX-SZ100-SYNCDIM-14K (14-key remote, up to 600 W at 24V).
