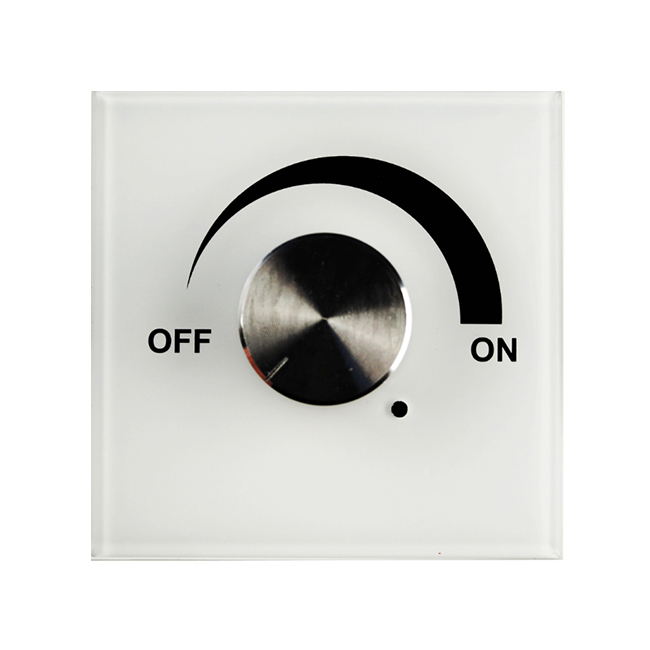

HX-WP86-010D is a wall panel dimmer, which output is 0-10V analog signal,compatible with various 0-10V CV led controller and CC led driver, to achieve stepless dimming via knob control, simple and intuitive control. Standards for commercial or home 86-type switch socket box installation, can be surface mounted or concealed, with fashion appearance, easy to install, simple to use and so on.
Product Details
Product Feature
1.The working voltage is: AC90-265V, do not need to configure the adapter.
2.Output:single 0-10V, Max output current is 100mA, Multiple led lamps can be parallel connected
3.short circuit protection design, automatic recovery after short-circuit fault removal
4.Knob design, simple operation, fashion appearance
5.The structure and dimension according to the 86-type European standards.
Technical specification
| Working temperature | -20-60â |
| Supply voltage | AC90V-265V |
| Standby power | <0.3W |
| Max input power | <1.8W |
| Output voltage | 0-10V |
| Max supply current | <0.04A |
| Connection | wiring terminal |
| Max output current | 100mA |
| External dimension | L86*W86*H50 mm |
| Packing size | L106*W106*H66 mm |
| Net weight | 185g |
| Gross weight | 200g |
Case dimension
Connection diagram
Wall-panel Installation instruction
Direction for use
Wall panel function
Turn the knob clockwise to increase the brightness(OFF-100%),
turn the knob counterclockwise to decrease the brightness(100%-OFF)
Typical Applications
Application Circuit
Related products
| Item number | HX-SZ200(0-10V) | Picture |
| Working temperature | -20-60â | |
| Supply voltage | 12V~24V | |
| Output | 1 channel | |
| External dimension | L127*W42*H33 (mm) | |
| Net weight | 150g | |
| Gross weight | 170g | |
| Output gray | 256 levels | |
| Max. Output current | 25A | |
| 0-10V signal consumption | <0.1mA | |
| Control standard | 0-10V analog signal | |
| Dimming range | OFF-100% | |
| PWM frequency | 490±5Hz |
Product information for placing order
| Product name | Item number |
| 0-10V wall panel dimmer | HX-WP86-010D |
English Datasheet Download
