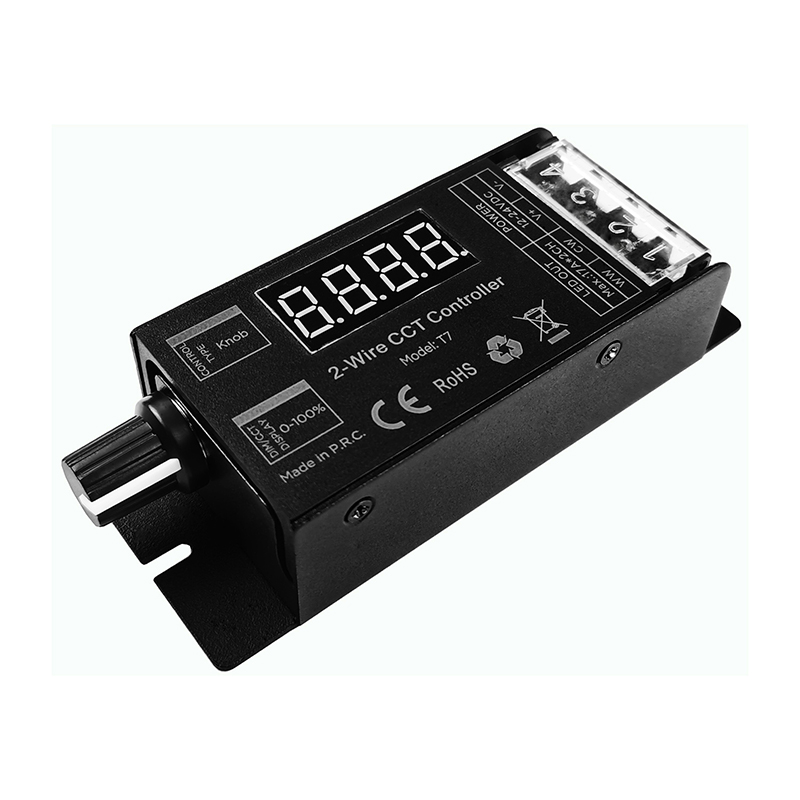

HX-T7/T6/T6-BLE

RF 2.4GHz CCT controller for 2-wire CCT LED strips
HX-T6/T7/T6-BLE is a low-voltage controller that uses advanced PWM control technology to control various dual white temperature constant-voltage LED lamps, such as: CCT LED strips, line lights, panel lights, etc., The LEDs can be dimmed or toned according to the needs of the application to make the environment more harmonious; this product adopts 2.4G wireless remote control and excellent synchronization technology, which can realize the wireless synchronization of all controllers.


T7 (linked to RC)	T6 (unlinked to RC)	T6-BLE (with TUYA-BLE mesh)

This product supports both manual knob dimming and remote control dimming.
T7: can be controlled by any compatible remote control as default; if unique-control is needed, please matching the code before installation and using.
T6: cannot be controlled by remote control, please pair it to the remote control when remote control is required.
T6-BLE: Integrate TUYA Bluetooth mesh function based on T6, also can be controlled by remote control after pairing.
Please refer to the corresponding remote-control manual for operation instruction in details.

Product Feature
1. It is a constant voltage controller for CCT LEDs, working voltage is DC12-24V;
2. With power-off memory storage function;
3. The PWM frequency is adjustable, 500Hz-15.6KHz, the factory default is 2KHz;
4. With high power watt output, the maximum current is 17A/CH, 12V200W/24V400W;
5. Adopt 2.4G wireless synchronous remote control, long distance, penetrability, good synchronization, which can realize synchronous control of countless controllers; the external antenna on the receiver can be extended out of the metal shell if needed;
6. Support knob dimming, the digital tube can display the brightness percentage, and can accurately select the desired brightness or color temperature;
7. The T7 version can be controlled by the remote control by default, and the T6 version cannot be controlled by the remote control by default, which is more convenient to adapt to the needs of different scenarios;
8. T6-BLE Bluetooth controlled by Tuya Application to achieve smart control like group control, scene control, timer control and so on.
9. With short circuit protection function;
10. 3-year warranty.
Technical Parameters

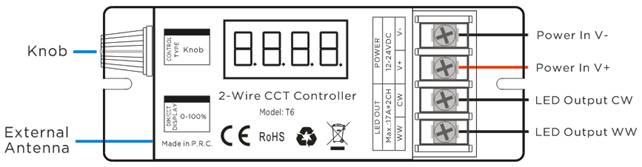

Connection port instruction

Direction for use
