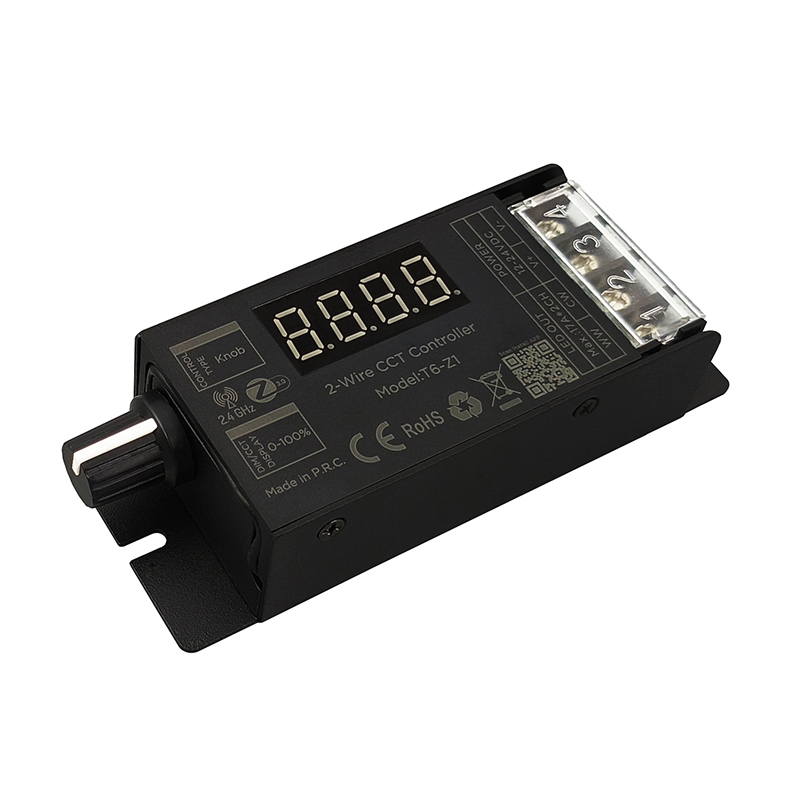

HX-T6-Z1

Product Feature
1. It is a constant voltage controller for 2-WIRE CCT LEDs, working voltage is DC12-24V;
2. With power-off memory storage function;
3. The PWM frequency is adjustable, 500Hz-12KHz, the factory default is 2KHz;
4. With high power watt output, the maximum current is 17A/CH, 12V200W/24V400W;
5. External antenna, convenient to extend the antenna outside the metal case when needed.
6. This product is designed the Tuya-ZS2S module and complies with the ZigBee 3.0 standard protocol. It needs to be used in conjunction with a ZigBee 3.0 gateway. The performance of Zigbee 3.0 will enable users to experience a high-quality and stable wireless intelligent system. It can also be connected to smart home hubs such as Amazon Alexa, Apple Home, and Google Assistant through smart gateways/bridges integrated with the matter-Zigbee protocol, such as the Philips Hue bridge and the Samsung SmartThings Station.
7. Integrated with multiple remote controls, it can be used in any combination to achieve single zone or partition control.
8. Short-circuit protection.
9. 3-year warranty.


Technical Parameters

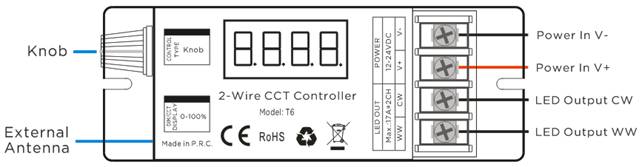

Connection port instruction

Direction for use
