0-10V Dimming Controllers
LED 0-10V Dimmer
0-10V dimmer adopts the advanced micro control unit, It can receive the 0-10V analog control signal which is internationally widely used. It changes the signal into PWM control signal to actuate the LED lamp. Dimming range from 0-100%, stable and soft.
0-10V dimmer adopts the advanced micro control unit, It can receive the 0-10V analog control signal which is internationally widely used. It changes the signal into PWM control signal to actuate the LED lamp. Dimming range from 0-100%, stable and soft.
Product Details
Product Details
Product Feature
- Adopt the advanced micro unit.
- Receive the 0-10V analog control signal which is internationally widely used.
- PWM control signal to actuate the LED lamp, dimming from 0-100%,stable and soft.
- PWM signal frequency:2KHz.
- Output gray,4096 levels.
- 2-year warranty.
Technical Parameters
| Working temperature | -20-60â |
| Supply voltage | 12V~24V |
| Output | 1 channel |
| External dimension | L127*W42*H33 (mm) |
| Packing size | L135*W55*H40 (mm) |
| Net weight | 150g |
| Gross weight | 170g |
| Output gray | 4096 levels |
| Max. Output current | <25A |
| Control standard | 0-10V analog signal |
| 0-10V signal consumption | <0.1mA |
| Dimming range | 0-100% |
| PWM frequency | 2KHz |

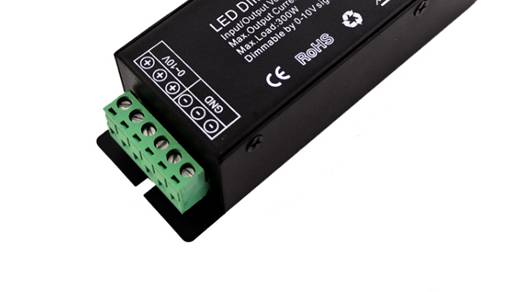

Interface Specifications
0-10V analog signal input/output interface:
Adopt screw terminals.
Power and Payload interface:
Adopt screw terminals.

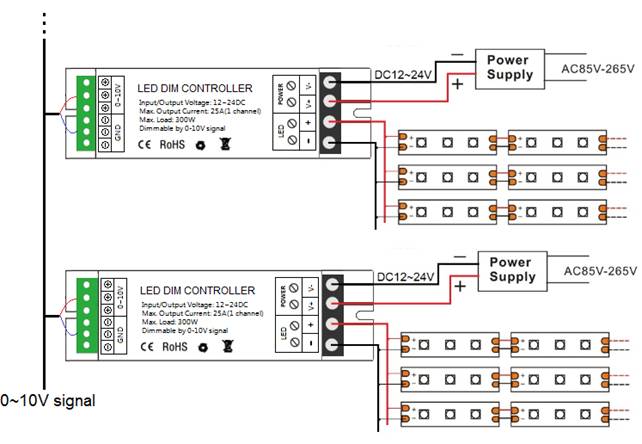

Typical Applications
Product information for placing order
| Product name | Item number |
| LED 0-10V Dimmer | HX-SZ200(0-10V) |
English Datasheet Download
