SPI / Pixel Controllers

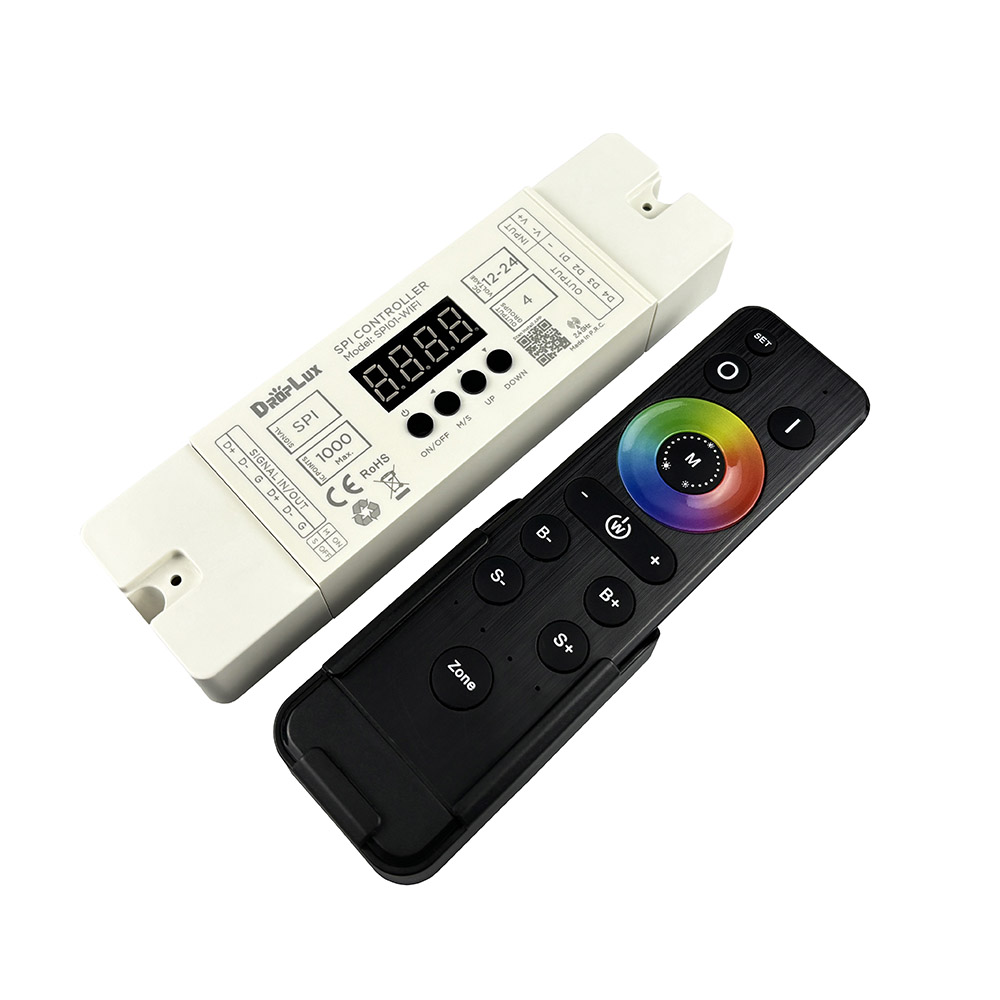

Product Details
Features
1. This product is a low-voltage SPI controller, the standard product supply voltage is 12-24V;
2. Four groups of SPI signal output ports (three-wire digital led strip), which can control up to 2048 pixels;
3. With digital tube and control buttons, it can also be used with RF remote control for mode selection, speed and IC point adjustment;
4. With power-off memory storage function;
5. Contains 136 effect modes, including horse racing, running water, trailing, color brushing, scanning, raindrops and other effects. The 135th mode is the 8-134th automatic cycle mode, and the 136th is the custom combination mode;
6. The controllers can realize multiple synchronous changes through shielded wire connection;
7. The remote control has 4 areas of overall control or independent control functions
8. This product is guaranteed for three years, excluding man-made damage, improper operation, overload short circuit or force majeure factors.
Technical Parameters:
Controller:
| Working temperature | -20-60â | Working voltage | DC12-24V |
| Static consumption | <1W | RF frequency | 2.4GHz |
| Gray level | 256 | Speed level | 99 |
| N. weight | 100g | G. weight | 130g |
| Dimension | L160*W46*H25 mm | Packing size | L170*W50*H29 mm |
| Output signal | 4 groups SPI | Max. control points | 2048 |
| RF distance | ≤20m | Modes | 136 |
| Memory function | Yes | Sync-work function | Yes |
| Compatible ICs | UCS1903ãWS2811ãTM1804ãSM16703ã17822ãICP943 | ||

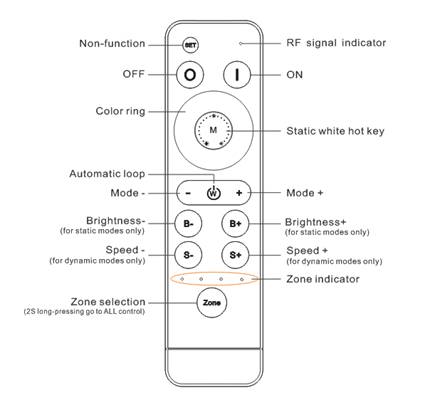

Remote control:
| Working temperature | -20â~60â | Supply voltage | DC3Vï¼AAA*2ï¼ |
| Standby current | <18uA | Working current | <25mA |
| Standby power | 54uW | Working power | 75mW |
| Net weight | 95g | RF frequency | 2.4GHz |
| External dimension | L150*W40*H20 mm | RF distance | ≤20m |
Dimension

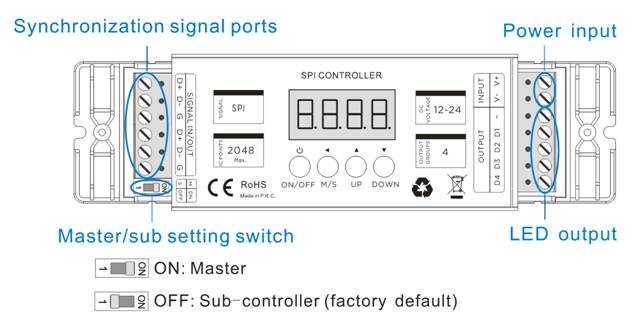

Connection ports
