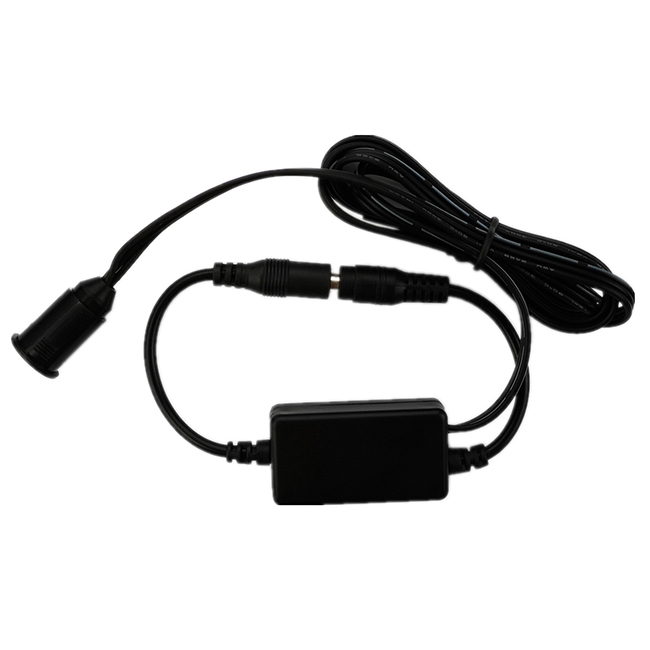

Sensor Controllers
Controller adopts the most advanced PWM (Pulse Width Modulation) digital control technology for controlling constant voltage LED lamps. The function is switch on/off and dim the light by the operation of peopleâs hand go through the ITR sensor without touching.
Product Details
Product Features
- Designed for single color constant voltage LED lights in Kitchen worktop lighting/ bathroom mirror application.
- DC12-24V, output current: 1ch*6A.
- Stable sensitivity with ITR sensor, soft light up and down.
- 3-year warranty exclude the artificial situation of damaged or overload working.
Technical Parameters
| Working temperature | 0-45â | Supply voltage | DC12V-24V |
| Static power consumption | <1W | Sensor | ITR |
| Sensor range | 0-8CM | Sensor cable | 1 meter |
| External dimension | L48*W26*H13 mm | Packing size | L100*W65*H40mm |
| Net weight | 50g | Gross weight | 65g |
| PWM frequency | 490Hz | Dimming range | 0.4%-100% |
| Output current | ≤6A | Max. Output power | 12V:<72W, 24V:<144W |
Dimensions
Controller:
Sensor:
Interface Specifications
Input port: DC plug (2.1/5.5, male) Loading port: DC plug(2.1/5.5, female)
Direction for use
Short-time (<1.5s) blocking the sensor in 0-8CM range, output lighting will gradually light on/off;
Long-time (>1.5s) blocking the sensor in 0-8CM range, output lighting will gradually to brighten up/dim down in turn ( brighten up in this time operation, will dim down in next time operation), smartly and flexibly to adjust the brightness with good use-feeling
Sensor installation:
Typical Applications
Product information for placing order
| Product name | Item number |
| MINI sensor controller | HX-MINI003-HS |
English Datasheet Download
