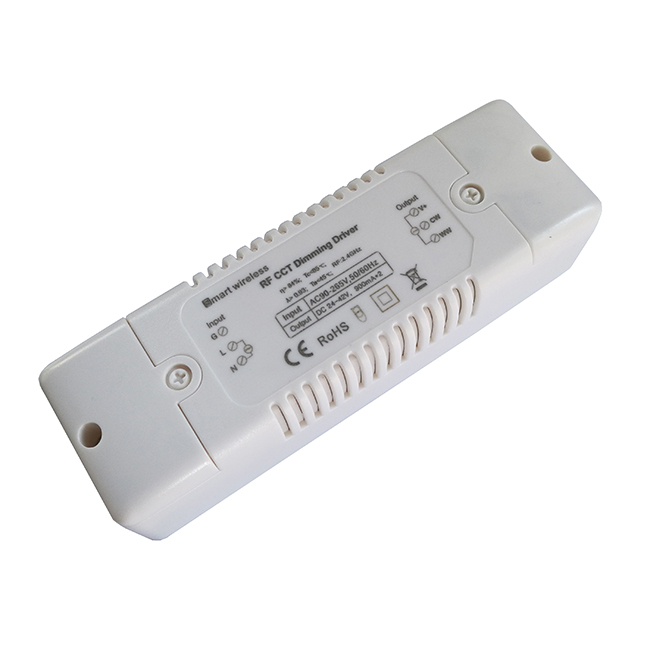

2.4G HC-X Driver（13-38W) V1.1.1

Features

1）Isolated driver
2) Adopting advanced PWM technology
3) Higher efficiency, high PF, non-flicker
4) Short-circuit protection, overvoltage protection
5) High-quality delicate & soft dimming effect（4096 level）
6) Memory function
7) 2.4GHz wireless remote control, Air Self-inspection Sync control
8) Compatible with Freelighting APP control system, achieve WIFI intelligent control by your mobile phone.
9) Designed for constant current CW+WW LED Light Fixtures: like LED panel, LED ceiling lamps, LED down light etc.
10) Widely used for intelligent household/commercial indoor lighting, like mall, hotel, office indoor lighting design.
11) Certificate: CE/EMC/RED/RoHS
12) 3 years warranty


Technical Parameters

Case temperature TC and driver life curve

1）38W drivers

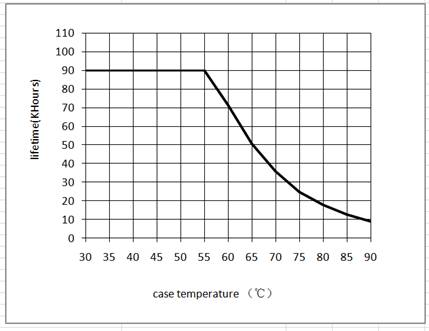

Figure 1  The life time for 38W drivers when Tc at 40℃，50℃，60℃，70℃，80℃，90℃

 2）25Wdrivers

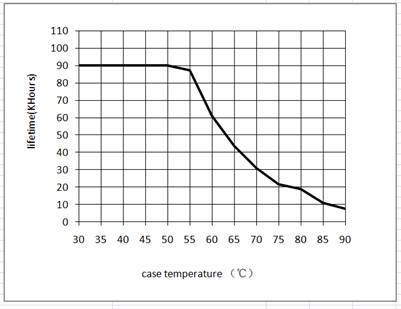

Figure 2  The life time for 25W drivers when Tc at 40℃，50℃，60℃，70℃，80℃，90℃


3KV Surge Testing

Main-product code and Parameters

1）38W regular models and parameters

2）25W regular models and parameters

（Three lines output, common anode）

Wire specifications recommend：
Input wire：three-core PVC plastic wire H05VV-F ，diameter =0.72mm，VDE certificate，core 3*1.0mm2. 300/500V，Stripping 11mm and tin dipping 3mm for the end of wire which is directly connect with the driver.

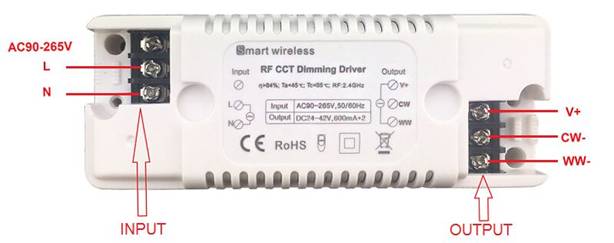

Output wire：three-core PVC plastic wire，diameter =0.5mm. Stripping 11mm and tin dipping 3mm for the end of wire which is directly connect with the driver.

Product compatibility（Remote control optional）

Item：HX-RFBT-2.4G（1 zone）	Item：HX-RFBT10-2.4G (4 zone)	Item：HX-RFBT12-2.4G（1 zone）
Item: HX-RFBT15（1 zone）	Item: HX-HWP86-CCT-4S（4 zone）	Item: HX-HWP86-XSP（4 zone）
Item: HX-HWP86-SR（PIR/Lux-sensor）	Item: HX-WP86-AP (RF signal repeater)	Item: HX-TUYA-2.4G-CCT

Typical Applications

1) Compatible with a variety of models of remote control at the same time, could be matched according to project situation

2) Wireless-synchronization function
Receivers which with wireless-synchronization functions will transmit the control signals from the remote control and self-inspection the work statues for each other, so multiple receivers in same zone will wireless-sync-work completely, not only static mode but also dynamic mode, to achieve wired-like operation experience. The distance up to 20 meters between remote control to receiver, and up to 10 meters between 2 receivers. RF wireless signal repeater is suggested in over range distance or when the workable distance is shorter by the materials of space, the effective range up to 30 meters.

3) 1 zone remote typical application, multi drivers could be wireless-sync controlled by the same one remote control.

4) 4 zones remote typical application, multi drivers could be controlled in each zone. 4 zone could be respectively and allover controlled

5) With TUYA-2.4G converter module, it can realize mobile phone intelligent lighting system control

Tips:

1) If the lamp turned off by remote control, it also can restart the lamp directly by the AC power switch(No-flicker driver need to restart after turn off the power switch and discharge for 5s.
2) If the lamp is light up without any operation in 167 hours, the driver will turn off the lamp automatically. It will recount the time if there is any operation from power switch or remote control.
3) Memory function, each time power-on reserve the mode which stop in the last power-down.
4) For operations and precautions related to lighting system settings, please refer to the operating instructions of the relevant remote control.
