484LEDs CCT LED light sheet
Flexible LED Light Sheet
Model BG-0294-2824-0484 is a soft Flexible LED Light Sheet for backlighting projects. Confirm dimensions, color, voltage, controller, power supply, and installation environment before ordering.
Download Technical Datasheet (PDF)
Product Specifications
| Model | BG-0294-2824-0484 |
|---|---|

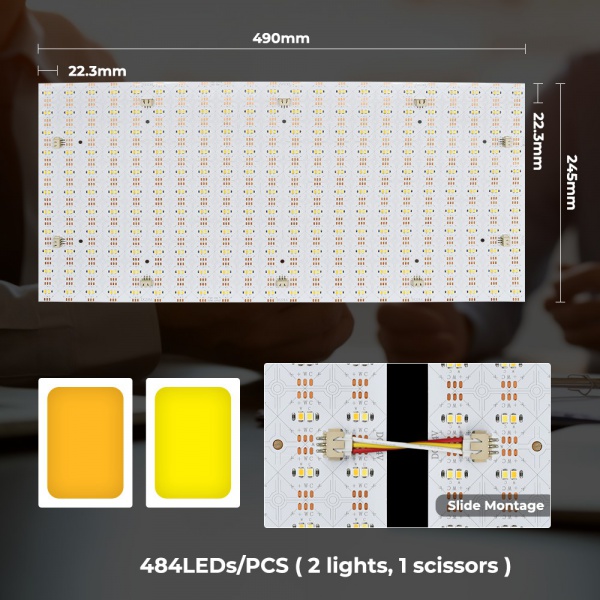

| Dimensions | 490*245mm |
| Power | 40W/PCS |

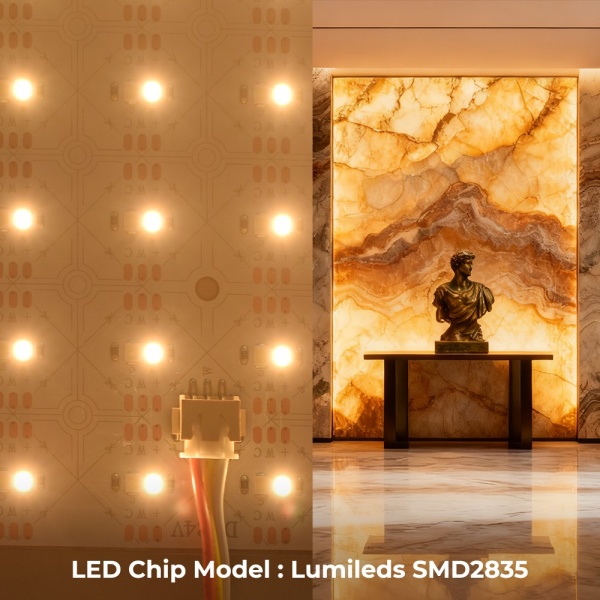

| LED type | Lumileds SMD2835, high brightness LED |

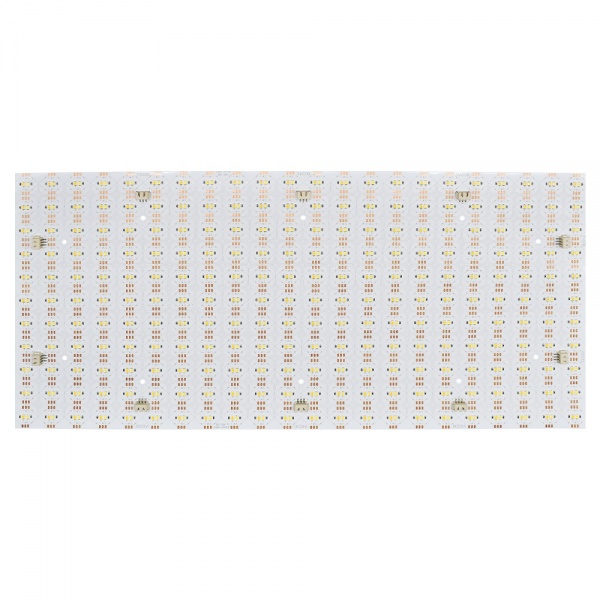

| LED quantity | 484LEDs/PCS |

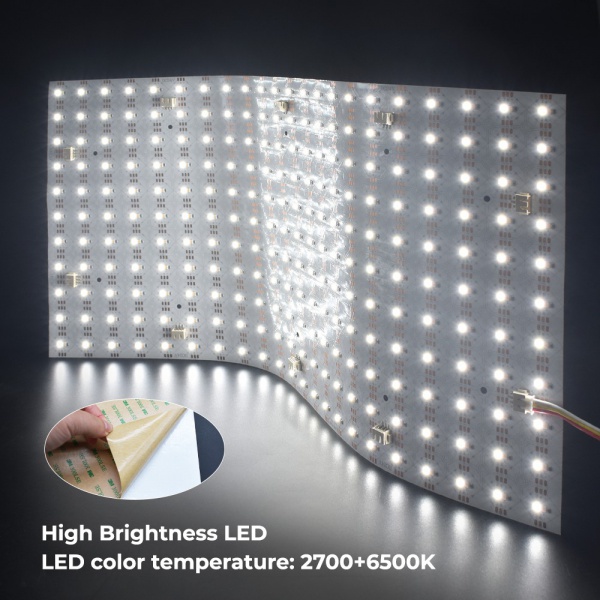

| LED color | 2700+6500K |

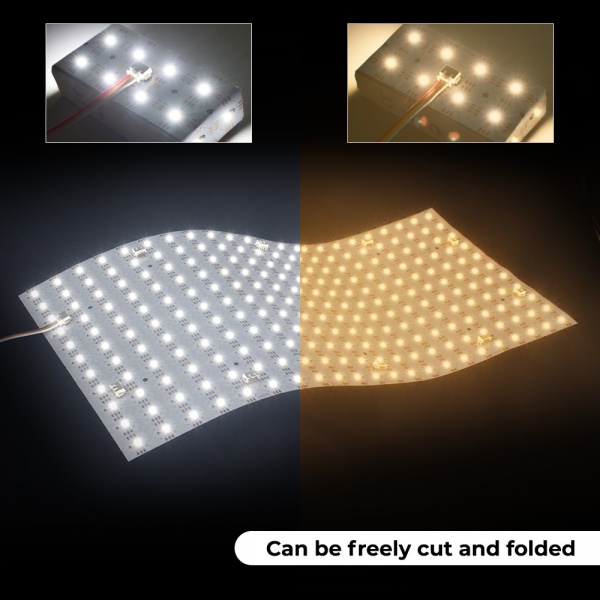

| Cut dimensions | DC24V 2LEDs/ 22.3*22.3mm |

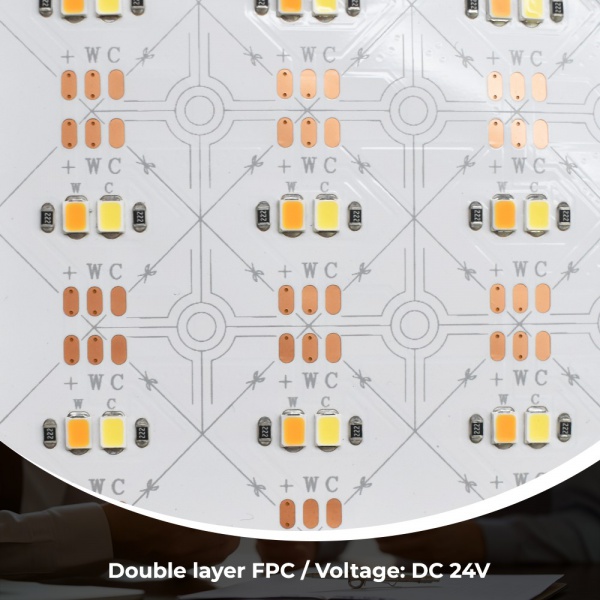

| PCB material | double layer FPC |
| Voltage | DC24V |

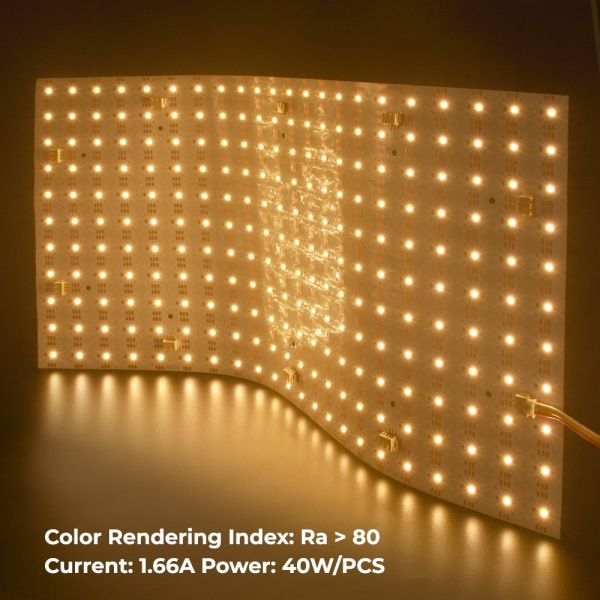

| CRI | Ra>80 |

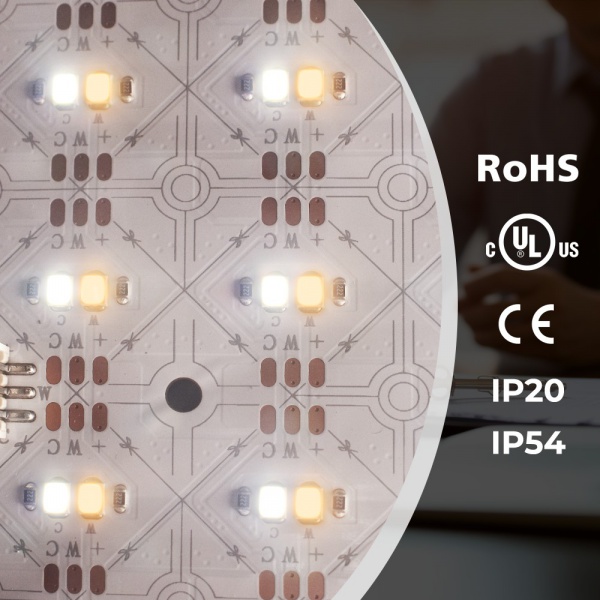

| IP grade | IP20, IP54 |
| Lifetime | 36000hours |
Product Details
Applications

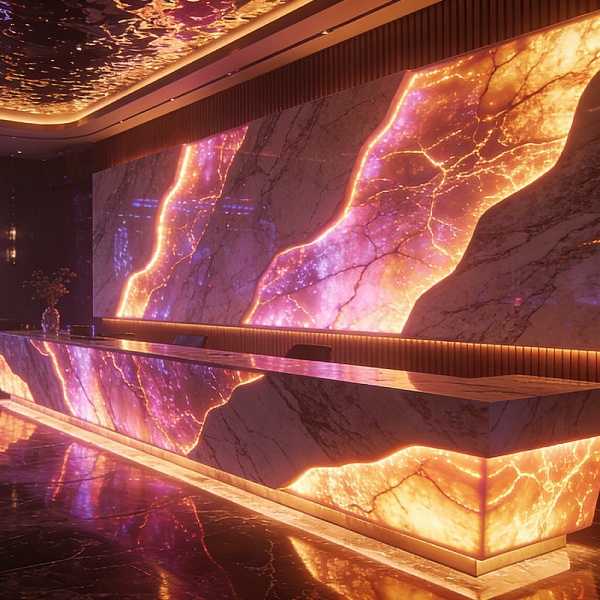

- Translucent stone, onyx, marble, quartz, and artificial stone backlighting
- Advertising light boxes and signage panels
- Retail fixtures, furniture, displays, counters, and feature walls
- Commercial interiors, hotels, villas, restaurants, and custom lighting projects
Technical Parameters
| Voltage | 12V / 24V options by model |
|---|---|
| Wattage | Refer to model datasheet |
| LED Density | Model-specific LED quantity and spacing |
| CRI | High CRI options available for architectural lighting |
| Cut Unit | Cuttable unit varies by model and PCB layout |
