288LEDs RGBW LED light sheet
Flexible LED Light Sheet
Model BG-2003-5024-0288 is a soft Flexible LED Light Sheet for backlighting projects. Confirm dimensions, color, voltage, controller, power supply, and installation environment before ordering.
Download Technical Datasheet (PDF)
Product Specifications

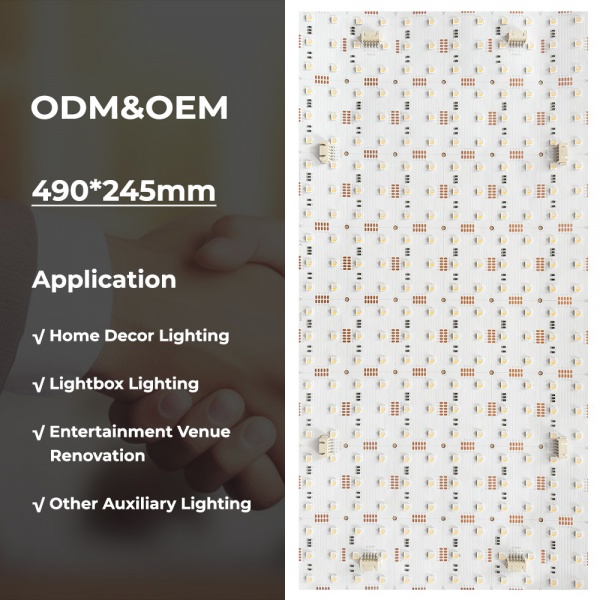

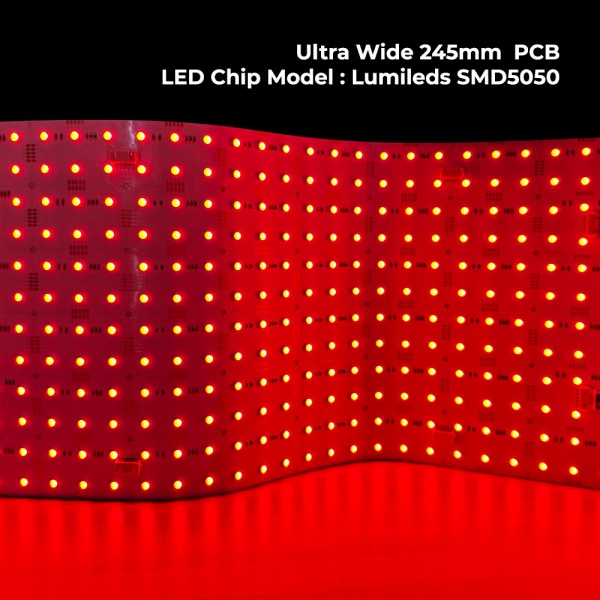

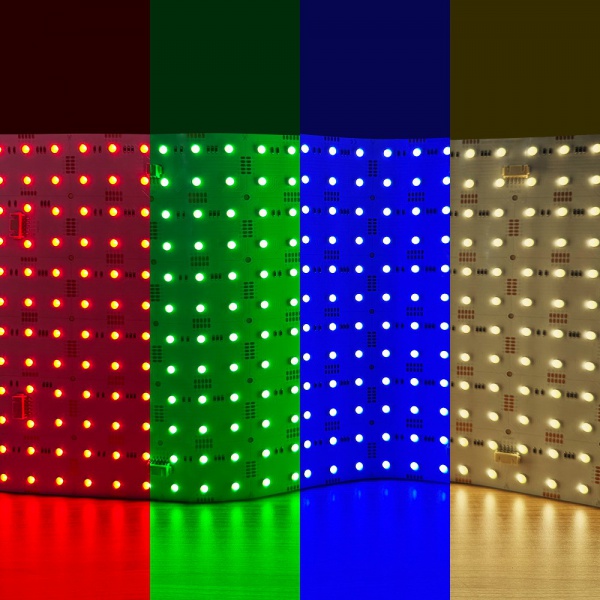

| Model | BG-2003-5024-0288 |
|---|---|
| Dimensions | 490*245mm |
| Power | 48W/PCS |
| LED type | SMD5050 |
| LED quantity | 288LEDs/PCS |
| LED color | RGBW |
| Cut dimensions | 61.25*40.8mm |
| PCB material | double layer FPC |

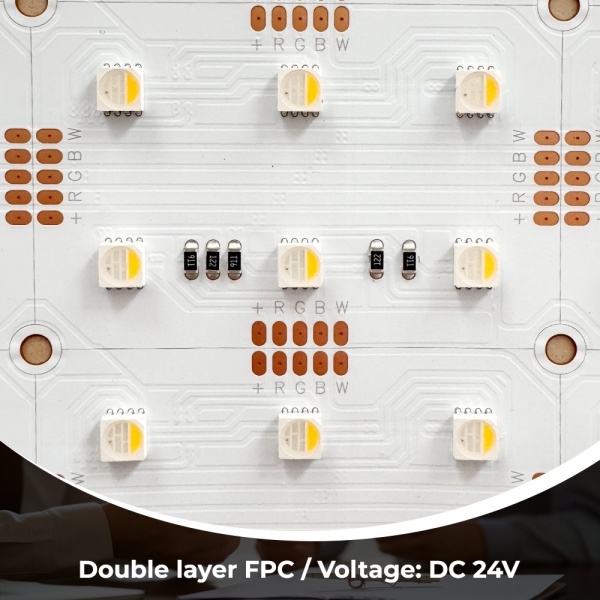

| Voltage | DC24V |
| CRI | W: >95 |
| IP grade | IP20, IP54 |
| Lifetime | 36000hours |
Recommended 24V power supply
BG-2003-5024-0288 uses 48W per sheet at 24V DC. We size drivers at 80% of rated output, so they run cool and leave headroom:
| Power supply | Rated output | Max sheets per driver (80% load) |
|---|---|---|
| Mean Well LRS-350-24 indoor, dry locations |
350W | 5 |
| Mean Well HLG-320H-24 IP67, damp locations |
320W | 5 |
For larger layouts, split the sheets into groups with one driver per group and feed each group separately. See all 24V LED power supplies for light sheets, or send us your layout for a free power plan.
Product Details
Applications

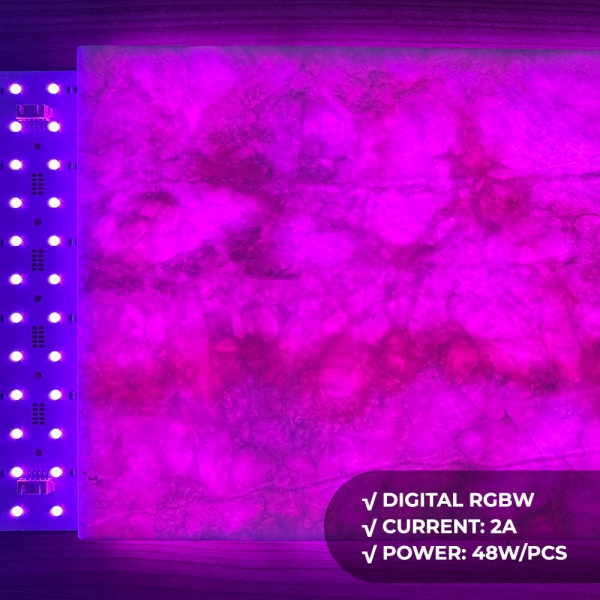

- Translucent stone, onyx, marble, quartz, and artificial stone backlighting
- Advertising light boxes and signage panels
- Retail fixtures, furniture, displays, counters, and feature walls
- Commercial interiors, hotels, villas, restaurants, and custom lighting projects
Where the BG-2003 LED Sheet Works Best

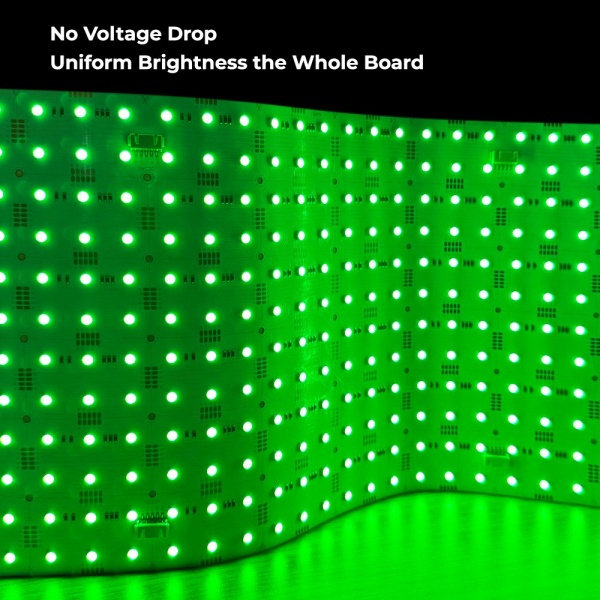

BG-2003 is an RGBW sheet with a block-style LED layout and a larger cutting unit, which keeps wiring simple on straightforward rectangular panels such as wall panels, light boxes and display backs.
BG-2003 Specifications
| Model | BG-2003 |
|---|---|
| Size | 490 × 245 mm |
| Thickness | 1.6 mm (excluding connector) |
| LEDs | 288 LEDs per sheet, SMD5050 |
| Color | RGBW |
| Power | 48 W per sheet |
| Voltage | DC 24V (2 A) |

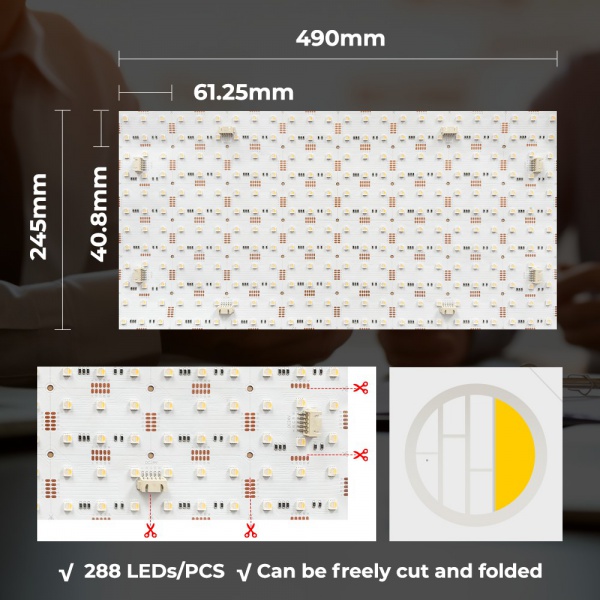

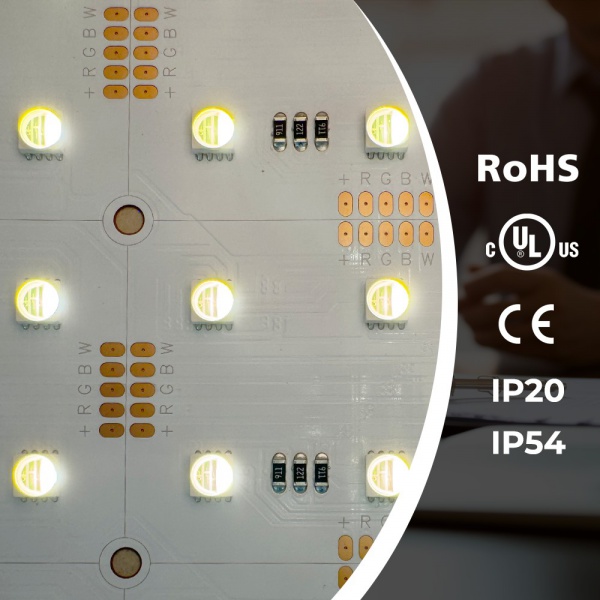

| Minimum cutting unit | 61.25 × 40.8 mm |
| IP rating | IP20 / IP54 |
| Luminous flux | 2,100 lm per sheet |
| Efficacy | 100 lm/W |
| CRI | White: Ra >95 |
| Input wiring | 5-wire input (V+, R, G, B, W) |
| Lifetime / warranty | > 36,000 hours / 5 years |
Cutting and Installing the BG-2003 LED Light Sheet

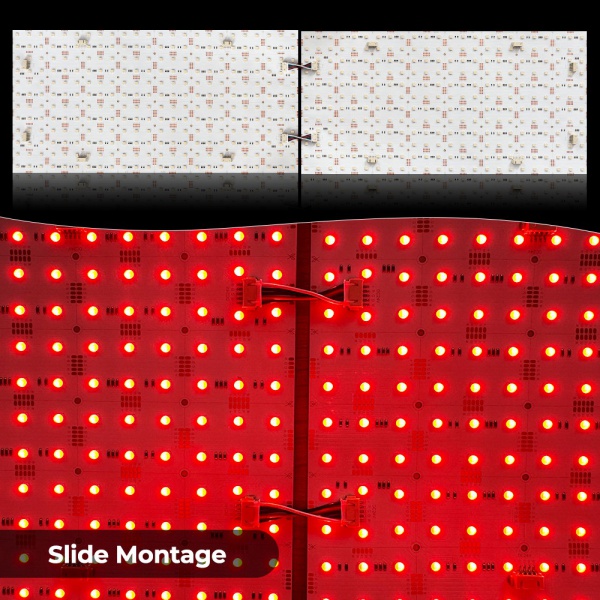

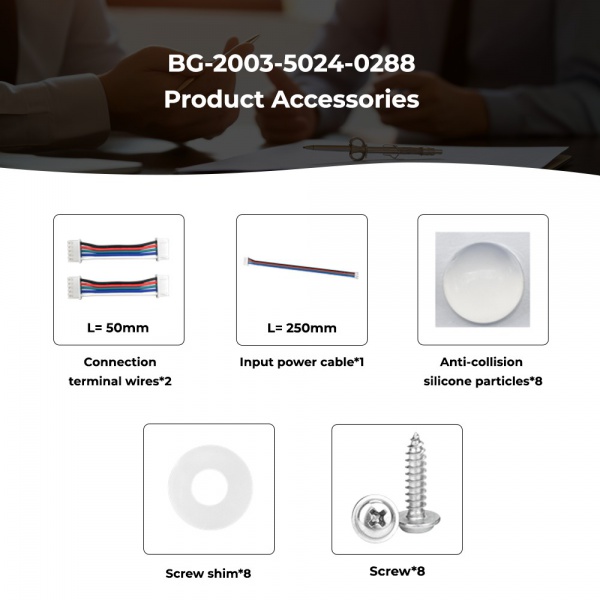

The BG-2003 is a flexible LED sheet on double-layer FPC, 1.6 mm thick, with 3M adhesive backing and screw-mount accessories. It can be cut along the marked lines with a minimum cutting unit of 61.25 × 40.8 mm; shapes follow that grid. Sheets can be joined with the supplied connection wires to cover large areas. For backlit stone, onyx, marble or resin, mount the sheet 30–80 mm behind the surface: thin, highly translucent materials need the larger distance or a diffuser, while denser materials can sit closer. Allow for the height of the input connector when planning the cavity.
Matching Power Supply and Controller
The BG-2003 uses 5-wire input (V+, R, G, B, W) at DC 24V. With a Mean Well HLG-320H-24 (320 W) loaded to 80%, one driver powers about 5 sheets of BG-2003; a Mean Well HLG-150H-24 powers about 2 sheets. Keep each driver at or below 80% of its rated power and split large surfaces into several zones rather than using one very large driver. For dimming and color control we recommend an RGBW controller such as the HX-SZ600-RGBW-RF24K (24-key RF remote, up to 768 W at 24V). For DMX512 lighting consoles use the HX-DMXCM-4CH decoder; for larger systems the HX-AMF-03 4-channel amplifier extends the load. Do not combine a dimmable driver with a PWM dimming controller in the same zone.
BG-2003 vs Similar LED Sheets
BG-0296 has the same LED count, power and size but a much finer 20.4 mm cut; choose BG-0296 for detailed shapes and BG-2003 for regular rectangles.
BG-2003 LED Sheet FAQ
Can the BG-2003 LED sheet be cut to a custom shape?
Yes. Cut only along the marked lines; the smallest cutting unit is 61.25 × 40.8 mm, so curves and angles follow that grid. Send us your drawing and we will check the layout before production.
How much space do I need behind the stone or panel?
We recommend 30–80 mm between the LED sheet and the translucent surface. Thinner, more translucent materials need more distance or a diffuser to hide the LEDs; the sheet itself is 1.6 mm thick, plus the height of the input connector.
What is the minimum order, and can I get a sample?
Orders start from one sheet. Samples are available for a fee and usually arrive in 7–10 days, including shipping.
Which power supply and controller should I use?
BG-2003 is a DC 24V product. With a Mean Well HLG-320H-24 (320 W) loaded to 80%, one driver powers about 5 sheets of BG-2003; a Mean Well HLG-150H-24 powers about 2 sheets. For control we usually recommend an RGBW controller such as the HX-SZ600-RGBW-RF24K (24-key RF remote, up to 768 W at 24V).
