250x250mm (10 inch) digital LED light sheet
Flexible LED Light Sheet
Model BG-0317-5012-0100 is a soft Flexible LED Light Sheet for backlighting projects. Confirm dimensions, color, voltage, controller, power supply, and installation environment before ordering.
Download Technical Datasheet (PDF)
Product Specifications
| Model | BG-0317-5012-0100 |
|---|---|

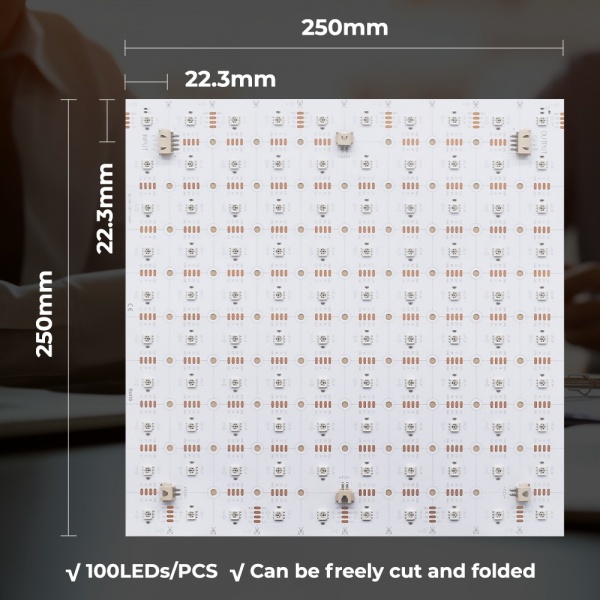

| Dimensions | 250*250mm (10*10 inch) |

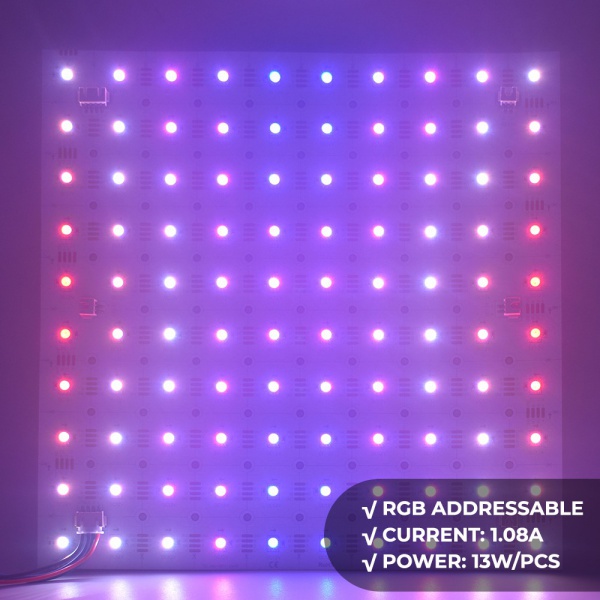

| Power | 13W/PCS |

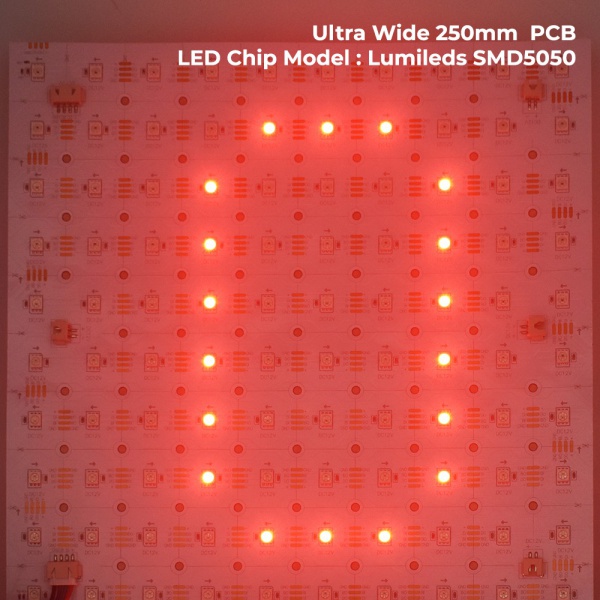

| LED type | SMD5050 |
| LED quantity | 100LED/100Pixels/PCS |

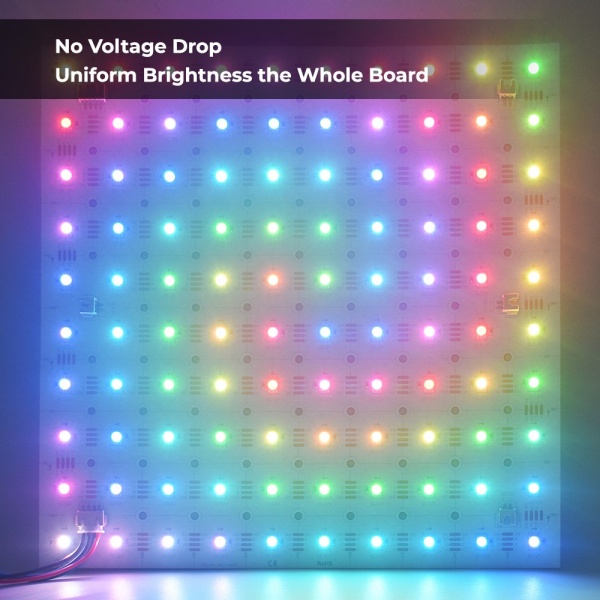

| LED color | RGB Addressable |
| Cut dimensions | 25x25mm (1*1 inch) |

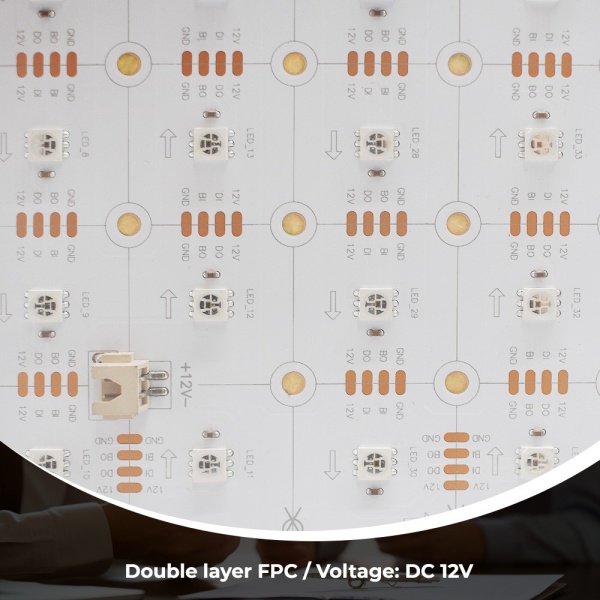

| PCB material | double layer FPC |
| Voltage | DC12V |

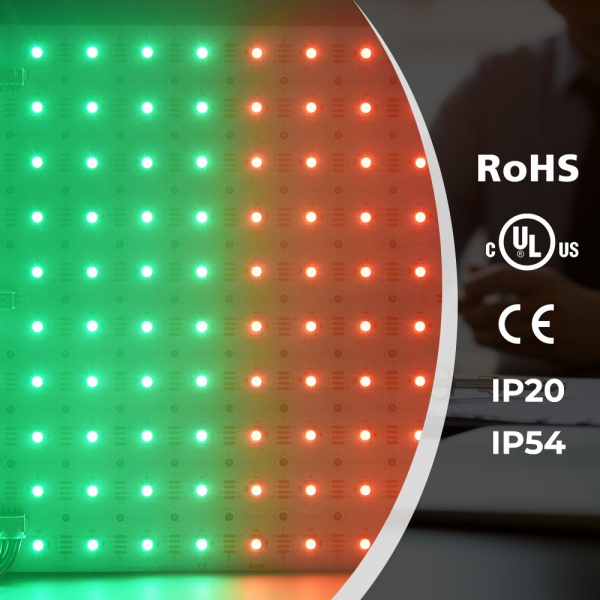

| IP grade | IP20, IP54 |
| Lifetime | 36000hours |
Product Details
Applications
- Translucent stone, onyx, marble, quartz, and artificial stone backlighting
- Advertising light boxes and signage panels
- Retail fixtures, furniture, displays, counters, and feature walls
- Commercial interiors, hotels, villas, restaurants, and custom lighting projects
Technical Parameters
| Voltage | 12V / 24V options by model |
|---|---|
| Wattage | Refer to model datasheet |
| LED Density | Model-specific LED quantity and spacing |
| CRI | High CRI options available for architectural lighting |
| Cut Unit | Cuttable unit varies by model and PCB layout |
