250x250mm (10 inch) CCT LED light sheet

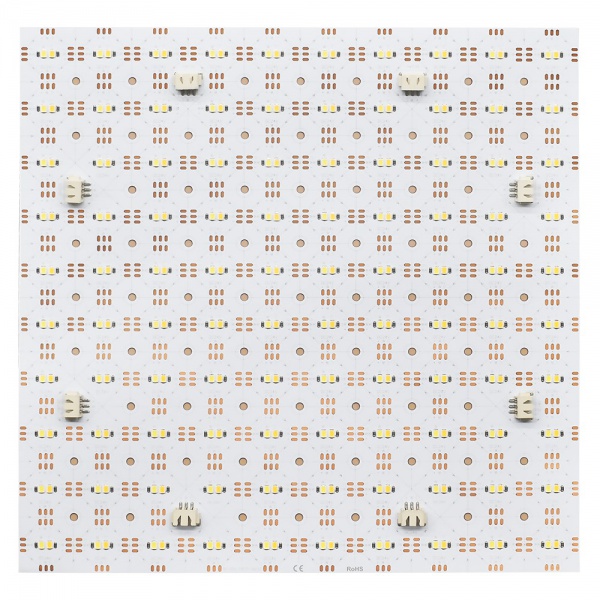

Flexible LED Light Sheet
Model BG-0315-2824-0200 is a soft Flexible LED Light Sheet for backlighting projects. Confirm dimensions, color, voltage, controller, power supply, and installation environment before ordering.
Download Technical Datasheet (PDF)
Product Specifications
| Model | BG-0315-2824-0200 |
|---|---|

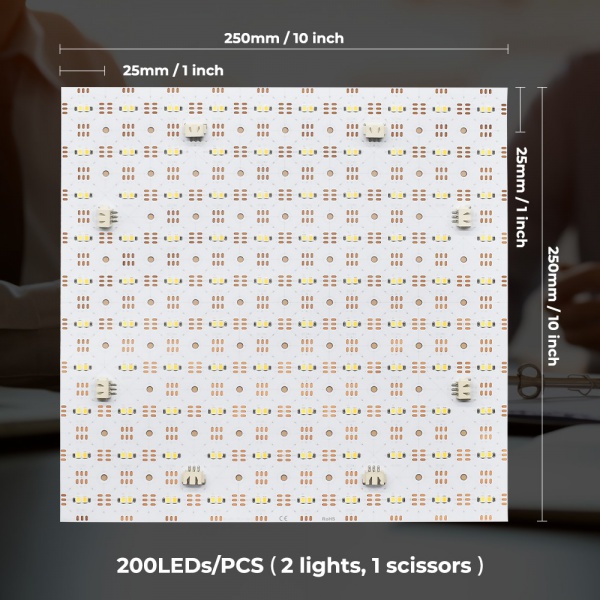

| Dimensions | 250*250mm(10*10 inch) |
| Power | 16W/PCS |
| LED type | SMD2835 |
| LED quantity | 200LEDs/PCS |
| LED color | WW+CW |
| Cut dimensions | DC24V 2LEDs/ 25*25mm (1*1 inch) |
| PCB material | double layer FPC |
| Voltage | DC24V |
| CRI | Ra>95 |
| IP grade | IP20 |
| Lifetime | 36000hours |
Recommended 24V power supply
BG-0315-2824-0200 uses 16W per sheet at 24V DC. We size drivers at 80% of rated output, so they run cool and leave headroom:
| Power supply | Rated output | Max sheets per driver (80% load) |
|---|---|---|
| Mean Well LRS-350-24 indoor, dry locations |
350W | 17 |
| Mean Well HLG-320H-24 IP67, damp locations |
320W | 16 |
For larger layouts, split the sheets into groups with one driver per group and feed each group separately. See all 24V LED power supplies for light sheets, or send us your layout for a free power plan.
Product Details

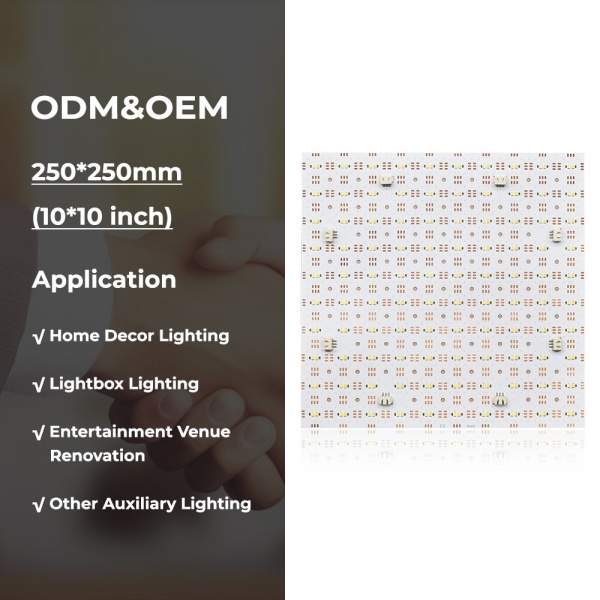

Applications
- Translucent stone, onyx, marble, quartz, and artificial stone backlighting
- Advertising light boxes and signage panels
- Retail fixtures, furniture, displays, counters, and feature walls
- Commercial interiors, hotels, villas, restaurants, and custom lighting projects
Where the BG-0315 LED Sheet Works Best

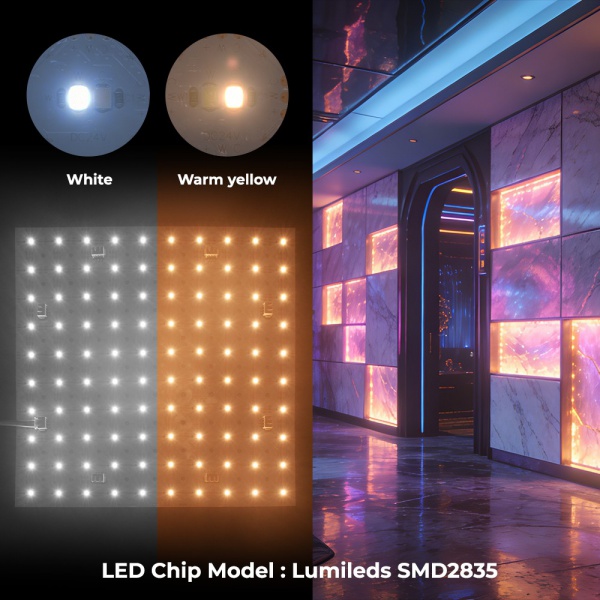

BG-0315 brings tunable white to the compact 10-inch tile, ideal for display cabinets, shelving, small stone or resin panels and modular layouts where warm-to-cool adjustment is needed.
BG-0315 Specifications

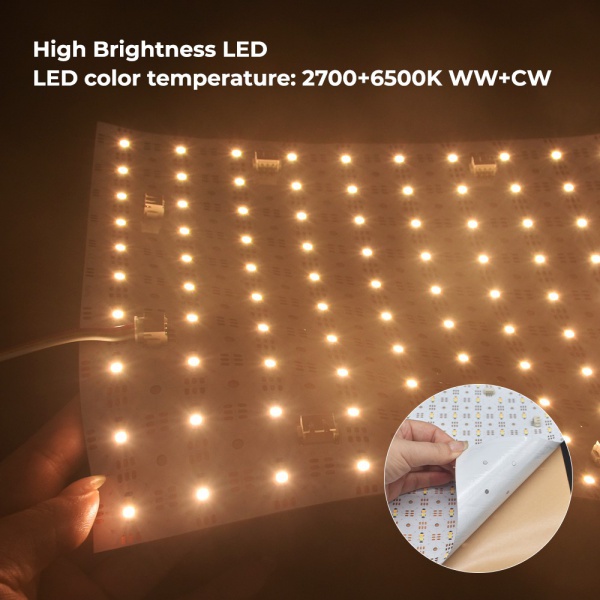

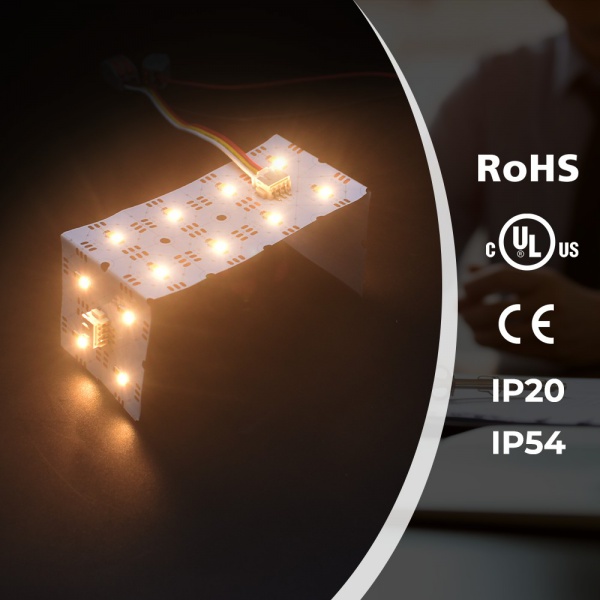

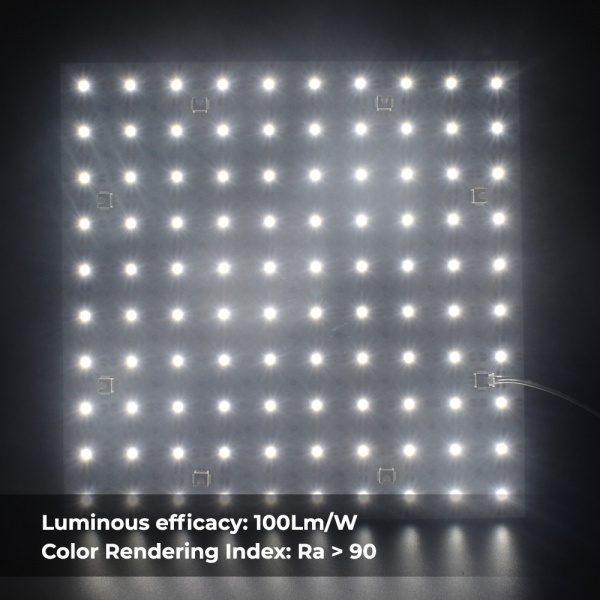

| Model | BG-0315 |
|---|---|
| Size | 250 × 250 mm (10 × 10 in) |
| Thickness | 1.6 mm (excluding connector) |
| LEDs | 200 LEDs per sheet, SMD2835 |
| Color | 2700K + 6500K (tunable white) |
| Power | 16 W per sheet |
| Voltage | DC 24V (0.67 A) |
| Minimum cutting unit | 2 LEDs (25 × 25 mm / 1 in) |
| IP rating | IP20 / IP54 |
| Luminous flux | 1,600 lm per sheet |
| Efficacy | 100 lm/W |
| CRI | Ra >95 |
| Input wiring | 3-wire input (common V+, warm white, cool white) |
| Lifetime / warranty | > 36,000 hours / 5 years |
| Series connection | up to 5 sheets with single-wire connection, up to 10 with double-wire connection |

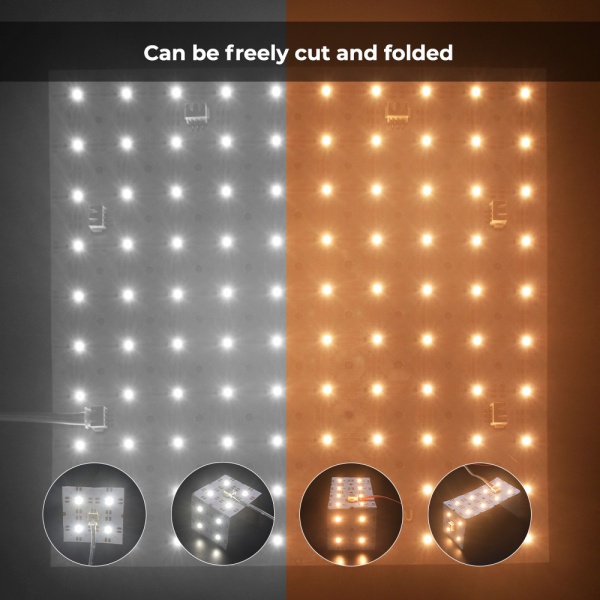

Cutting and Installing the BG-0315 LED Light Sheet

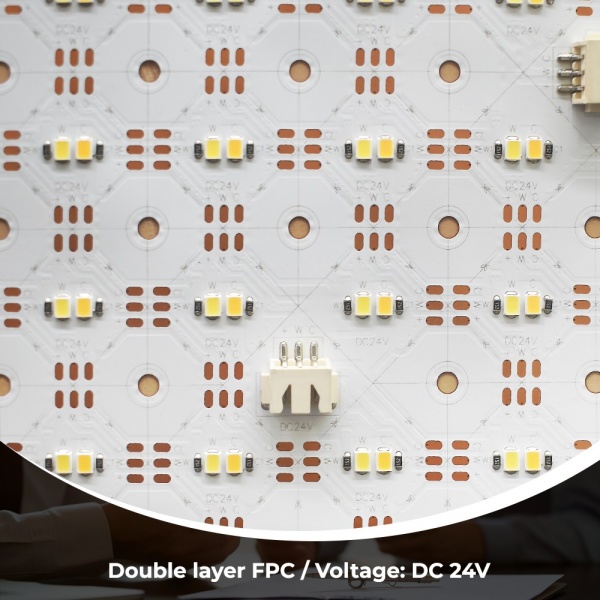

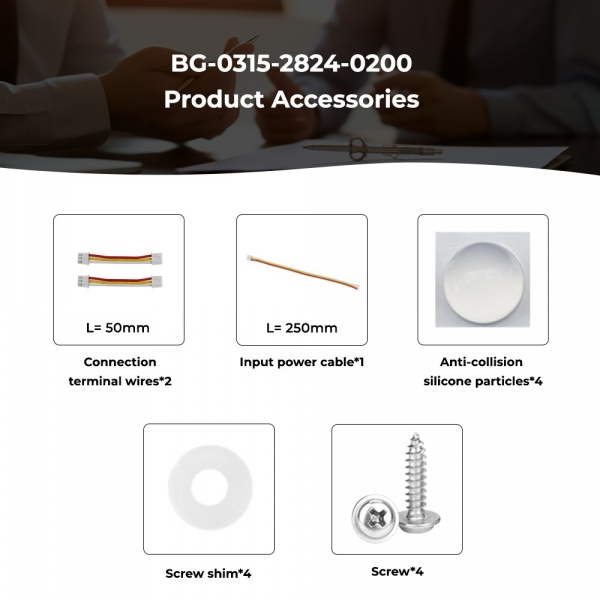

The BG-0315 is a flexible LED sheet on double-layer FPC, 1.6 mm thick, with 3M adhesive backing and screw-mount accessories. It can be cut along the marked lines with a minimum cutting unit of 2 LEDs (25 × 25 mm / 1 in); shapes follow that grid. Sheets can be joined with the supplied connection wires to cover large areas. For backlit stone, onyx, marble or resin, mount the sheet 30–80 mm behind the surface: thin, highly translucent materials need the larger distance or a diffuser, while denser materials can sit closer. Allow for the height of the input connector when planning the cavity.
Matching Power Supply and Controller
The BG-0315 uses 3-wire input (common V+, warm white, cool white) at DC 24V. With a Mean Well HLG-320H-24 (320 W) loaded to 80%, one driver powers about 16 sheets of BG-0315; a Mean Well HLG-150H-24 powers about 7 sheets. Keep each driver at or below 80% of its rated power and split large surfaces into several zones rather than using one very large driver. For dimming and color control we recommend a tunable white controller such as the HX-SZ600-14K-CCT (14-key RF remote, up to 480 W at 24V). For European wall-switch installations, the HX-SZ600-WP86-CCT wall panel set is available. Do not combine a dimmable driver with a PWM dimming controller in the same zone.
BG-0315 vs Similar LED Sheets
It is the tunable white version of BG-0314. For larger areas with fewer joints, the 490 × 245 mm BG-0294 or the continuous BG-2102 roll are more efficient.
BG-0315 LED Sheet FAQ
Can the BG-0315 LED sheet be cut to a custom shape?
Yes. Cut only along the marked lines; the smallest cutting unit is 2 LEDs (25 × 25 mm / 1 in), so curves and angles follow that grid. Send us your drawing and we will check the layout before production.
How much space do I need behind the stone or panel?
We recommend 30–80 mm between the LED sheet and the translucent surface. Thinner, more translucent materials need more distance or a diffuser to hide the LEDs; the sheet itself is 1.6 mm thick, plus the height of the input connector.
What is the minimum order, and can I get a sample?
Orders start from one sheet. Samples are available for a fee and usually arrive in 7–10 days, including shipping.
Which power supply and controller should I use?
BG-0315 is a DC 24V product. With a Mean Well HLG-320H-24 (320 W) loaded to 80%, one driver powers about 16 sheets of BG-0315; a Mean Well HLG-150H-24 powers about 7 sheets. For control we usually recommend a tunable white controller such as the HX-SZ600-14K-CCT (14-key RF remote, up to 480 W at 24V).
