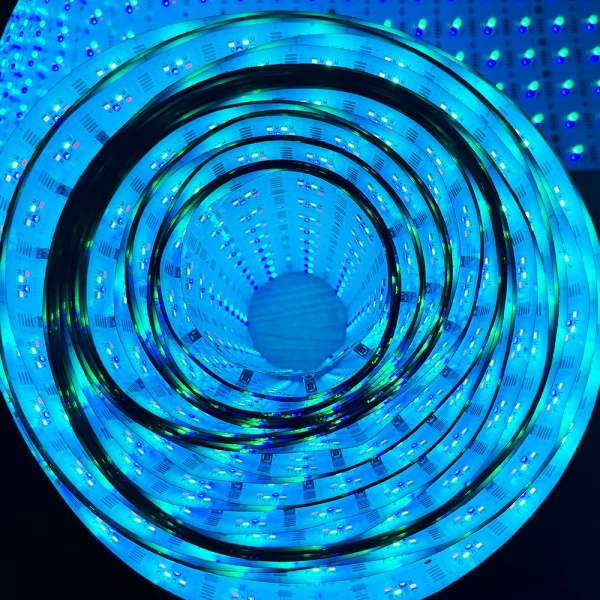

100M extra-long flexible RGBW LED light sheet
The 100M extra-long flexible RGBW LED light sheet supports long-run color backlighting for signage, stone panels, displays and interiors.
Flexible LED Light Sheet
Model BG-2103-2824-1296 is a soft Flexible LED Light Sheet for backlighting projects. Confirm dimensions, color, voltage, controller, power supply, and installation environment before ordering.
Download Technical Datasheet (PDF)
Product Specifications
| Model | BG-2103-2824-1296 |
|---|---|

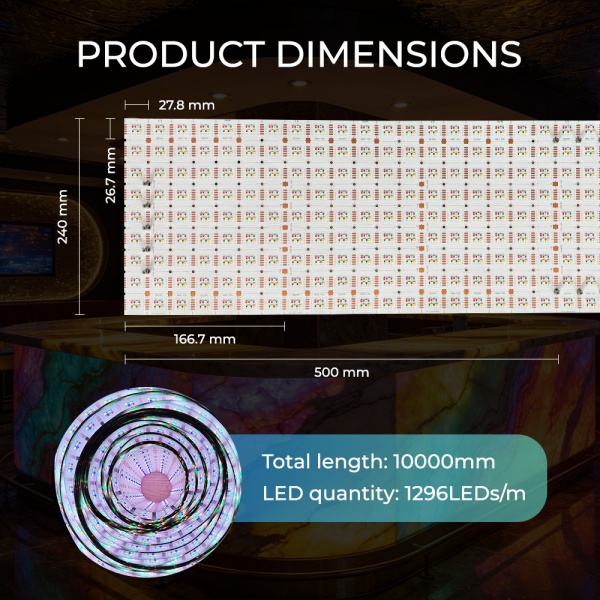

| Dimensions | 10000*240mm |
| Power | 60W/m |

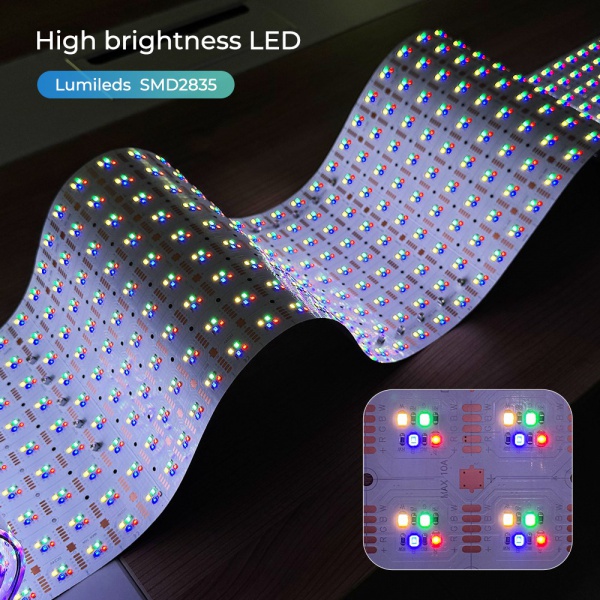

| LED type | Lumileds SMD2835, high brightness LED |
| LED quantity | 1296LEDs/m |

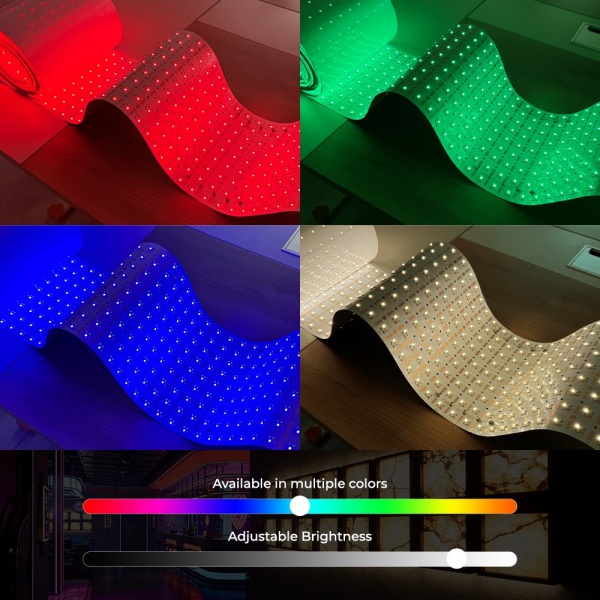

| LED color | R G B W |
| Cut dimensions | 4LED/ 27.8*26.7mm |
| PCB material | double layer FPC |
| Voltage | DC24V |
| CRI | Ra>95 |
| Lifetime | >36000 hours |
Recommended 24V power supply
BG-2103-2824-1296 uses 60W per meter at 24V DC. We size drivers at 80% of rated output, so they run cool and leave headroom:
| Power supply | Rated output | Max length per driver (80% load) |
|---|---|---|
| Mean Well LRS-350-24 indoor, dry locations |
350W | 4.6 m |
| Mean Well HLG-320H-24 IP67, damp locations |
320W | 4.2 m |
For larger layouts, split the run into groups with one driver per group and feed each group separately. See all 24V LED power supplies for light sheets, or send us your layout for a free power plan.
Product Details
Applications
- Translucent stone, onyx, marble, quartz, and artificial stone backlighting
- Advertising light boxes and signage panels
- Retail fixtures, furniture, displays, counters, and feature walls
- Commercial interiors, hotels, villas, restaurants, and custom lighting projects
Where the BG-2103 LED Sheet Works Best

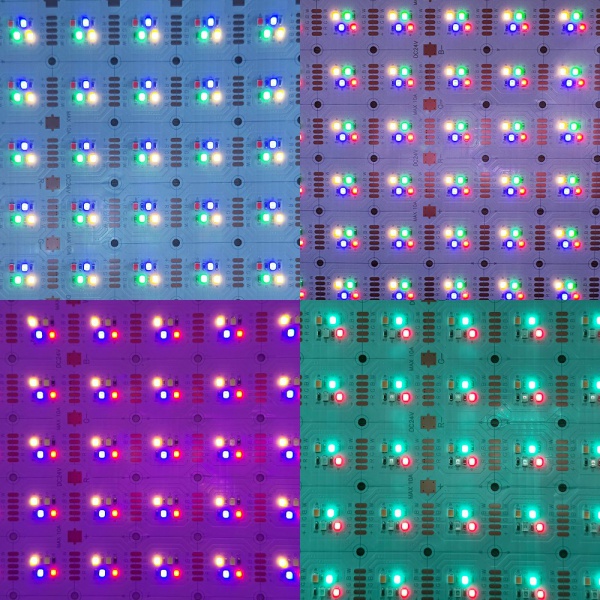

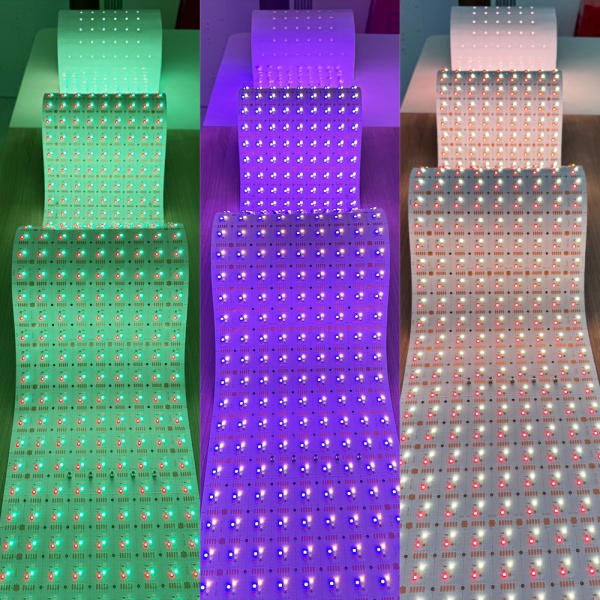

BG-2103 brings RGBW color to a continuous roll, so long feature walls, ceilings and architectural lines can change color without seams between sheets. The high LED density gives an even surface in color and white.
BG-2103 Specifications
| Model | BG-2103 |
|---|---|

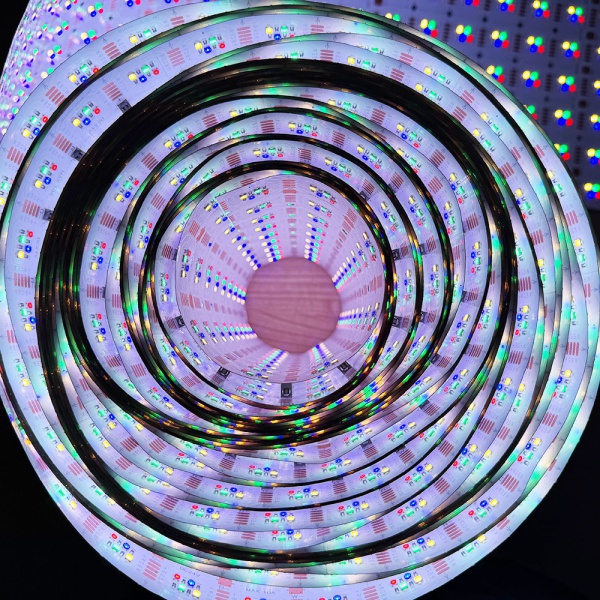

| Size | 240 mm wide, 10 m per roll (custom lengths up to 100 m) |
| Thickness | 1.6 mm (excluding connector) |
| LEDs | 1,296 LEDs per meter, Lumileds SMD2835 |
| Color | RGBW (white 3000K) |

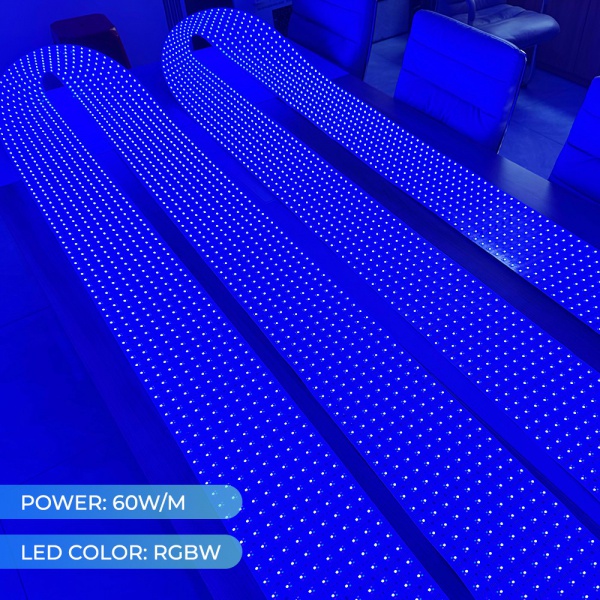

| Power | 60 W per meter |
| Voltage | DC 24V (2.5 A per meter) |
| Minimum cutting unit | 4 LEDs (27.8 × 26.7 mm) |

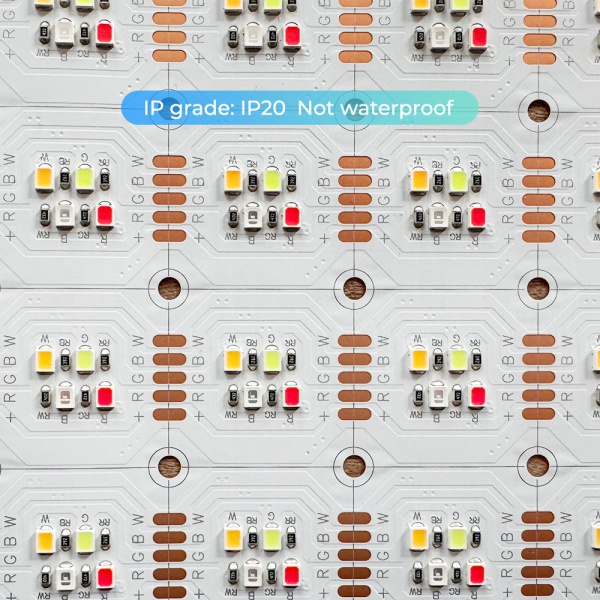

| IP rating | IP20 |
| Efficacy | 95 lm/W |
| CRI | Ra >95 |
| Input wiring | 5-wire input (V+, R, G, B, W) |
| Lifetime / warranty | > 36,000 hours / 5 years |
Cutting and Installing the BG-2103 LED Light Sheet

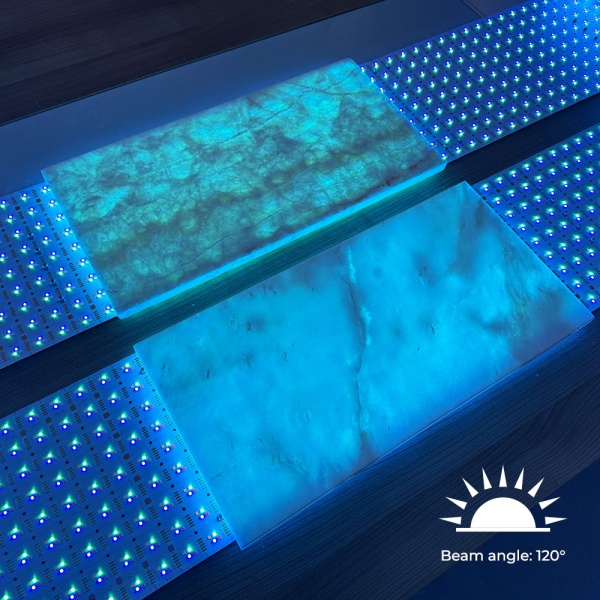

The BG-2103 is a flexible LED sheet on double-layer FPC, 1.6 mm thick, with 3M adhesive backing and screw-mount accessories. It can be cut along the marked lines with a minimum cutting unit of 4 LEDs (27.8 × 26.7 mm); shapes follow that grid. Standard rolls are 10 m long, and custom lengths up to 100 m can be produced. For backlit stone, onyx, marble or resin, mount the sheet 30–80 mm behind the surface: thin, highly translucent materials need the larger distance or a diffuser, while denser materials can sit closer. Allow for the height of the input connector when planning the cavity.
Matching Power Supply and Controller
The BG-2103 uses 5-wire input (V+, R, G, B, W) at DC 24V. With a Mean Well HLG-320H-24 (320 W) loaded to 80%, one driver powers about 4.3 meters of BG-2103; a Mean Well HLG-150H-24 powers about 2.0 meters. Keep each driver at or below 80% of its rated power and split large surfaces into several zones rather than using one very large driver. For dimming and color control we recommend an RGBW controller such as the HX-SZ600-RGBW-RF24K (24-key RF remote, up to 768 W at 24V). For DMX512 lighting consoles use the HX-DMXCM-4CH decoder; for larger systems the HX-AMF-03 4-channel amplifier extends the load. Do not combine a dimmable driver with a PWM dimming controller in the same zone.
BG-2103 vs Similar LED Sheets
For panels and shaped areas, the RGBW sheets BG-0296, BG-0313 and BG-2003 are easier to handle. For tunable white only, the matching roll is BG-2102.
BG-2103 LED Sheet FAQ
Can the BG-2103 LED sheet be cut to a custom shape?
Yes. Cut only along the marked lines; the smallest cutting unit is 4 LEDs (27.8 × 26.7 mm), so curves and angles follow that grid. Send us your drawing and we will check the layout before production.
How much space do I need behind the stone or panel?
We recommend 30–80 mm between the LED sheet and the translucent surface. Thinner, more translucent materials need more distance or a diffuser to hide the LEDs; the sheet itself is 1.6 mm thick, plus the height of the input connector.
What is the minimum order, and can I get a sample?
Orders start from one meter. Samples are available for a fee and usually arrive in 7–10 days, including shipping.
Which power supply and controller should I use?
BG-2103 is a DC 24V product. With a Mean Well HLG-320H-24 (320 W) loaded to 80%, one driver powers about 4.3 meters of BG-2103; a Mean Well HLG-150H-24 powers about 2.0 meters. For control we usually recommend an RGBW controller such as the HX-SZ600-RGBW-RF24K (24-key RF remote, up to 768 W at 24V).
